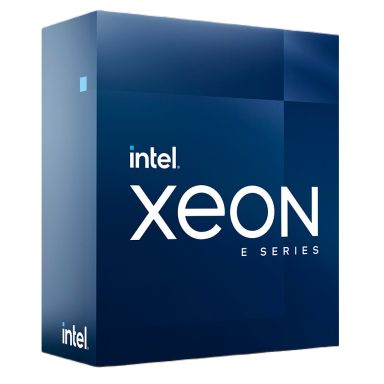

Intel Xeon E-2436 processor 2.9 GHz 18 MB Box

Processor base frequency

2.9 GHz

Processor manufacturer

Intel

Processor codename

Raptor Lake

Thermal Design Power (TDP)

65 W

Processor cache

18 MB

Processor ARK ID

236190

Processor model

E-2436

Processor threads

12

System bus rate

16 GT/s

Processor operating modes

64-bit

Processor boost frequency

5 GHz

Stepping

B0

Processor family

Intel Xeon E

Processor cores

6

Box

Yes

Processor socket

LGA 1700

Performance cores

6

Maximum number of DMI lanes

8

Maximum internal memory supported by processor

128 GB

Memory types supported by processor

DDR5-SDRAM

Memory channels

Dual-channel

ECC

Yes

Discrete graphics card

No

On-board graphics card model

Not available

On-board graphics card

No

Discrete graphics card model

Not available

Thermal Design Power (TDP)

65 W

Intel® Secure Key

Yes

Thermal Monitoring Technologies

Yes

Intel® Turbo Boost Technology

2.0

Intel Trusted Execution Technology

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Idle States

Yes

Execute Disable Bit

Yes

Enhanced Intel SpeedStep Technology

Yes

PCI Express slots version

5.0

Supported instruction sets

AVX 2.0, SSE4.1, SSE4.2

Scalability

1S

Intel VT-x with Extended Page Tables (EPT)

Yes

Embedded options available

No

CPU configuration (max)

1

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Thermal Design Power (TDP)

65 W

Status

Launched

Market segment

Server

Launch date

Q4'23

Intel Virtualization Technology (VT-x)

Yes

Servicing status

Baseline Servicing

Maximum number of PCI Express lanes

20

Thermal Design Power (TDP)

65 W

Processor ARK ID

236190

Thermal Monitoring Technologies

Yes

Idle States

Yes

Execute Disable Bit

Yes

PCI Express slots version

5.0

Supported instruction sets

AVX 2.0, SSE4.1, SSE4.2

Scalability

1S

Embedded options available

No

CPU configuration (max)

1

Market segment

Server

Harmonized System (HS) code

8542310001

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

740.17B1

Use conditions

Server/Enterprise

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Intel Turbo Boost Max Technology 3.0

No

Intel® OS Guard

Yes

Intel® Secure Key

Yes

Intel® Turbo Boost Technology

2.0

Intel Trusted Execution Technology

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® Boot Guard

Yes

Intel® Optane™ DC Persistent Memory Supported

No

Mode-based Execute Control (MBE)

Yes

Intel® Turbo Boost Technology 2.0 frequency

5 GHz

Intel® Transactional Synchronization Extensions

No

Intel® Total Memory Encryption

Yes

Intel® Total Memory Encryption - Multi Key

Yes

Microprocessor PCIe Revision

Gen 5

Intel® Virtualization Technology with Redirect Protection (VT-rp)

Yes

Tjunction

100 °C

Harmonized System (HS) code

8542310001

Maximum internal memory

128 GB

CPU configuration (max)

1
