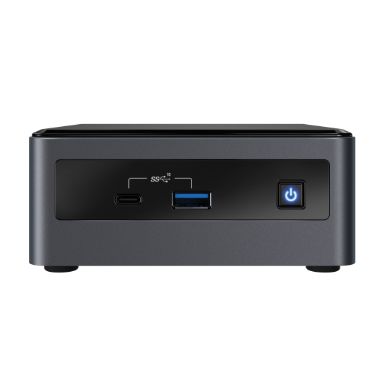

Intel NUC 10 Performance kit - NUC10i3FNHN UCFF Black BGA 1528 i3-10110U 2.1 GHz
Out of Stock
|
Call For Price (0808 189 1246)
Motherboard
Motherboard form factor
UCFF
Processor socket
BGA 1528
Processor
Thermal Design Power (TDP)
25 W
Built-in processor
Yes
Processor model
i3-10110U
Processor boost frequency
4.1 GHz
Processor threads
4
Processor frequency
2.1 GHz
Processor socket
BGA 1528
Processor lithography
14 nm
Processor cores
2
Processor family
Intel® Core™ i3
Processor manufacturer
Intel
Processor codename
Comet Lake
CPU configuration (max)
1
Memory bandwidth supported by processor (max)
42.6 GB/s
Processor cache
4 MB
Processor generation
10th gen Intel® Core™ i3
Memory
Memory voltage
1.2 V
Memory slots type
SO-DIMM
Number of memory slots
2
Memory channels
Dual-channel
Memory bandwidth (max)
42.6 GB/s
ECC
No
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2666 MHz
Maximum internal memory
64 GB
Removable memory card slot
SDXC with UHS-II support
Number of DIMM slots
2
Video
On-board graphics card
Yes
Graphics card family
Intel
Storage
Supported storage drive types
HDD & SSD
Storage drive sizes supported
M.2-2.5
Number of storage drives supported
2
RAID levels
0- 1
Compatible memory cards
SDXC
Card reader integrated
Yes
SSD form factor
M.2
Graphics
Number of displays supported
3
On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® UHD Graphics
Discrete graphics card model
Not available
Audio
Intel® High Definition Audio (Intel® HD Audio)
No
Audio output channels
7.1 channels
Built-in speaker(s)
No
Network
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
LAN controller
Intel® I219-V
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN controller model
Intel Wi-Fi 6 AX201
Ports & interfaces
Combo headphone/mic port
Yes
Number of SATA III connectors
2
DC-in jack
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Internal USB 2.0 ports quantity
2
HDMI version
2.0b
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB version
2.0/3.2 Gen 2 (3.1 Gen 2)
USB ports quantity
7
Thunderbolt 3 ports quantity
1
M.2 card slot (storage)
2242/2280
Graphics output
HDMI 2.0b; USB-C (DP1.2)
Expansion slots
PCI Express slots version
3.0
Number of M.2 (M) slots
1
PCI Express configurations
1x4- 2x2- 1x2+2x1- 4x1
Design
Motherboard form factor
UCFF
Product type
Mini PC barebone
Cable lock slot type
Kensington
Cable lock slot
Yes
ARK ID
214604
On/off switch
Yes
LED indicators
Yes
Cooling type
Passive
Product colour
Black
Chassis type
UCFF
Status
Launched
Performance
Motherboard form factor
UCFF
Windows operating systems supported
Windows 10 x64
Number of displays supported
3
Trusted Platform Module (TPM)
No
Processor socket
BGA 1528
Operating system installed
No
Compatible operating systems
Windows 11 (64-bit)- Windows 10 (64-bit)
Audio output channels
7.1 channels
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Harmonized System (HS) code
84713000
Export Control Classification Number (ECCN)
5A992C
Consumer infrared Rx sensor
Yes
Supported RAID configuration
2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)
Software
Operating system installed
No
Compatible operating systems
Windows 11 (64-bit)- Windows 10 (64-bit)
Processor special features
Intel TSX-NI
No
Intel® Secure Key
Yes
Intel® OS Guard
Yes
Intel Stable Image Platform Program (SIPP)
No
Thermal Monitoring Technologies
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
No
Intel® Quick Sync Video Technology
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Flex Memory Access
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel 64
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel Clear Video Technology
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Optane™ Memory Ready
Yes
Intel Rapid Storage Technology
Yes
Intel® High Definition Audio (Intel® HD Audio)
No
Embedded options available
No
Intel® Platform Trust Technology (Intel® PTT)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel® vPro™ Platform Eligibility
No
Colour
Product colour
Black
Power
DC input voltage
19 V
AC adapter output voltage
19 V
Power supply type
External AC adapter
Power supply
90 W
Technical details
Intel® AES New Instructions (Intel® AES-NI)
Yes
Cable lock slot type
Kensington
Cable lock slot
Yes
Intel Rapid Storage Technology
Yes
Intel® High Definition Audio (Intel® HD Audio)
No
Embedded options available
No
Trusted Platform Module (TPM)
No
RAID levels
0- 1
Processor cores
2
Cooling type
Passive
Chassis type
UCFF
ARK ID
214604
Internal I/O
Number of SATA connectors
2
Indication
LED indicators
Yes
Management features
On/off switch
Yes
Features
Number of displays supported
3
Logistics data
Harmonized System (HS) code
84713000
Operational conditions
Storage temperature (T-T)
-20 - 40 °C
Operating temperature (T-T)
0 - 35 °C
Weight & dimensions
Width
117 mm
Depth
112 mm
Height
51 mm
Packaging content
Processor included
Intel® Core™ i3-10110U Processor (4M Cache- up to 4.10 GHz)
Other features
DC input voltage
19 V
Embedded options available
No
Number of SATA connectors
2
HDD size
2.5"
Chassis type
UCFF
Processor ARK ID
196451
Additional headers
CEC- 2x USB2.0- FRONT_PANEL- RGB
Launch date
Q2'21
Intel NUC 10 Performance kit - NUC10i3FNHN UCFF Black BGA 1528 i3-10110U 2.1 GHz
| Weight | 1.22 kgs |
