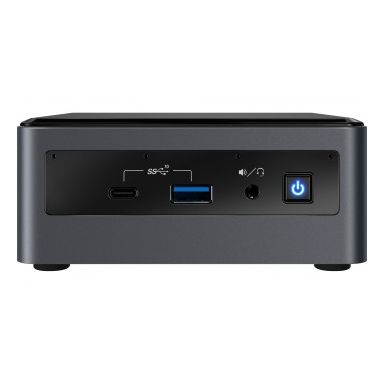

Intel NUC BXNUC10I7FNHJA3 PC/workstation 10th gen Intel Core i7 i7-10710U 8 GB DDR4-SDRAM 1000 GB HDD UCFF Black Mini PC Windows 10 Home
Out of Stock
|
Call For Price (0808 189 1246)
Processor
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Comet Lake
Maximum internal memory supported by processor
64 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2666-2133 MHz
Tjunction
100 °C
Thermal Design Power (TDP)
25 W
PCI Express configurations
1x4-2x2-1x2+2x1-4x1
Maximum number of PCI Express lanes
16
Configurable TDP-down
12.5 W
Memory bandwidth supported by processor (max)
42.6 GB/s
Configurable TDP-down frequency
0.8 GHz
Processor cache
12 MB
Processor frequency
1.1 GHz
Processor model
i7-10710U
Number of processors installed
1
Processor manufacturer
Intel
Processor boost frequency
4.7 GHz
System bus rate
4 GT/s
Processor socket
BGA 1528
Processor threads
12
Processor cores
6
PCI Express slots version
3
Processor family
10th gen Intel® Core⢠i7
Configurable TDP-up frequency
1.6 GHz
Configurable TDP-up
25 W
Memory
ECC
No
Memory layout (slots x size)
2 x 4 GB
Internal memory
8 GB
Maximum internal memory
64 GB
Memory slots
2x SO-DIMM
Internal memory type
DDR4-SDRAM
Memory clock speed
2666 MHz
Number of DIMM slots
2
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Memory bandwidth (max)
42.6 GB/s
Storage
Intel® Optane⢠Memory module installed
Yes
Storage media
HDD
Number of storage drives supported
2
Number of HDDs installed
1
Optical drive type
No
HDD capacity
1000 GB
HDD size
2.5"
Card reader integrated
Yes
Compatible memory cards
SDXC
Total storage capacity
1000 GB
Intel® Optane⢠Memory module capacity
16 GB
SSD form factor
M.2
Total HDDs capacity
1000 GB
Graphics
Discrete graphics adapter
No
On-board graphics adapter dynamic frequency (max)
1150 MHz
On-board graphics adapter base frequency
300 MHz
Maximum on-board graphics adapter memory
32 GB
Number of displays supported (on-board graphics)
3
On-board graphics adapter OpenGL version
4.5
On-board graphics adapter DirectX version
12
Number of execution units
24
On-board graphics adapter ID
0x9BCA
On-board graphics adapter
No
Discrete graphics adapter model
Not available
On-board graphics adapter model
Intel® UHD Graphics
Optical drive
Optical drive type
No
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Bluetooth
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Ethernet LAN data rates
10-100-1000 Mbit/s
WLAN controller model
Intel Wi-Fi 6 AX201
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
LAN controller
Intel® I219-V
Ports & interfaces
Combo headphone/mic port
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Thunderbolt 3 ports quantity
1
Total number of SATA connectors
2
Number of SATA III connectors
2
HDMI version
2.0b
Microphone in
No
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI port
No
DC-in jack
Yes
On/off button
Yes
M.2 card slot (storage)
2242/2280
Internal USB 2.0 ports quantity
2
DisplayPort version
1.2
Expansion slots
PCI Express slots version
3
Technical details
Intel 64
Yes
Intel® High Definition Audio (Intel® HD Audio)
Yes
Product type
Mini PC
Trusted Platform Module (TPM)
No
Intel® Turbo Boost Technology
2
Intel® Quick Sync Video Technology
Yes
Intel® My WiFi Technology (Intel® MWT)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Product colour
Black
Chassis type
UCFF
Motherboard form factor
UCFF
Audio output channels
7.1 channels
ARK ID
188814
Design
Product colour
Black
Chassis type
UCFF
Intel® vPro⢠Platform Eligibility
No
Performance
Embedded options available
No
Number of displays supported
3
ARK ID
188814
Product type
Mini PC
Trusted Platform Module (TPM)
No
Motherboard form factor
UCFF
Audio output channels
7.1 channels
Consumer infrared Rx sensor
Yes
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Status
Launched
Software
Operating system architecture
64-bit
Compatible operating systems
Windows 10- 64-bit*
Operating system installed
Windows 10
Pre-installed operating system
Windows 10- 64-bit*
Power
DC input voltage
19 V
Weight & dimensions
Width
117 mm
Depth
112 mm
Height
51 mm
Intel NUC BXNUC10I7FNHJA3 PC/workstation 10th gen Intel Core i7 i7-10710U 8 GB DDR4-SDRAM 1000 GB HDD UCFF Black Mini PC Windows 10 Home
| Weight | 1.00 kgs |
