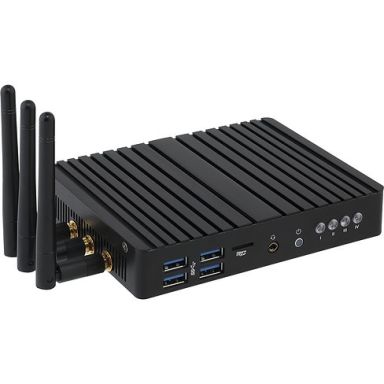

Qbic BXP-352 embedded computer 1.6 GHz Intel® Celeron® 32 GB eMMC 2 GB
In Stock
|
£426.65
£511.98 (Inc. VAT)
get it next day (UK Mainland Orders)
Processor
Processor frequency
1.6 GHz
Processor family
Processor model
N3060
Processor cores
2
Processor boost frequency
2.48 GHz
Processor socket
BGA 1170
Processor cache
2 MB
Processor cache type
L2
System bus rate
5 GT/s
Processor threads
2
PCI Express slots version
2
Processor lithography
14 nm
Processor operating modes
64-bit
Stepping
D1
Processor codename
Braswell
Thermal Design Power (TDP)
6 W
Processor series
Intel Celeron N3000 series
Maximum number of PCI Express lanes
4
PCI Express configurations
1x2+2x1, 1x4, 2x2, 4x1
Tjunction
Scenario Design Power (SDP)
4 W
Integrated 4G WiMAX
No
Maximum internal memory supported by processor
8 GB
Conflict-Free processor
Yes
Memory types supported by processor
DDR3L-SDRAM
Memory clock speeds supported by processor
1600 MHz
ECC supported by processor
No
Memory
Internal memory
2 GB
Internal memory type
DDR3L-SDRAM
Maximum internal memory
8 GB
Memory layout (slots x size)
1 x 2 GB
Memory slots
2x SO-DIMM
Memory channels
Dual-channel
Storage
Total storage capacity
32 GB
Card reader integrated
Yes
Storage media
eMMC
Compatible memory cards
SDXC
Graphics
On-board graphics card
Yes
Discrete graphics card
No
On-board graphics card model
Maximum on-board graphics card memory
8 GB
On-board graphics card base frequency
320 MHz
On-board graphics card burst frequency
600 MHz
On-board graphics card DirectX version
12
Discrete graphics card model
Not available
Number of execution units
12
Number of displays supported (on-board graphics)
3
Network
Wi-Fi
Yes
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN data rates
10,100,1000 Mbit/s
Ports & interfaces
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
HDMI ports quantity
2
HDMI version
1.4b
DVI port
No
VGA (D-Sub) ports quantity
0
Ethernet LAN (RJ-45) ports
2
Headphone outputs
0
Microphone in
No
Combo headphone/mic port
Yes
DC-in jack
Yes
Expansion slots
Mini PCI Express slots
2
Performance
Product colour
Black
Software
Operating system installed
No
Processor special features
Processor code
SR2KN
Yes
No
No
Intel Smart Connect Technology
No
No
No
Yes
No
Yes
Yes
No
Yes
Enhanced Intel SpeedStep Technology
Yes
Execute Disable Bit
Yes
Idle States
Yes
Thermal Monitoring Technologies
Yes
Intel Trusted Execution Technology
No
Intel Enhanced Halt State
Yes
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Embedded options available
Yes
Intel Rapid Storage Technology
No
Yes
No
Yes
Intel 64
Yes
Intel Stable Image Platform Program (SIPP)
No
No
UART
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel Secure Boot
Yes
Intel Clear Video Technology
Yes
Intel Identity Protection Technology version
1
Intel Secure Key Technology version
1
Intel Small Business Advantage (SBA) version
0
Intel Smart Response Technology version
0
Intel Virtualization Technology (VT-x)
Yes
Intel Smart Connect Technology version
0
Processor package size
25 x 27 mm
Processor ARK ID
91832
Power
Power supply
65 W
Power supply input voltage
100 - 240 V
Operational conditions
Operating temperature (T-T)
Storage temperature (T-T)
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
140.8 mm
Depth
107.5 mm
Height
27 mm
Weight
570 g

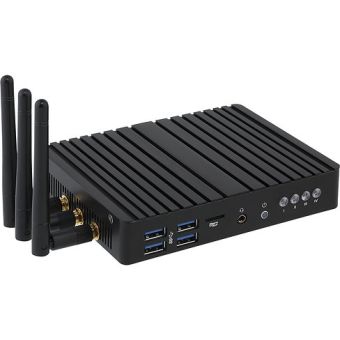

Qbic BXP-352 embedded computer 1.6 GHz Intel® Celeron® 32 GB eMMC 2 GB
| Length | 10.75 cm |
| Width | 14.08 cm |
| Height | 2.7 cm |
| Weight | 0.57 kgs |
