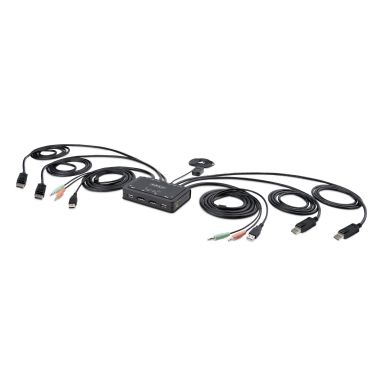

Startech.Com 2-Port Dual-Monitor Displayport Cable Kvm Switch
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Cable length
1.5 m
Console USB ports quantity
2
Console ports
3.5mm headphone- 3.5mm mic- DisplayPort- USB A
USB version
2.0
Number of microphone inputs
2
DisplayPorts quantity
4
DisplayPort version
1.2
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
2
Console DisplayPorts ports quantity
2
Technical details
Product colour
Black
Rack mounting
No
Scan interval
10-20-30-40-50-60 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
USB version
2.0
Sustainability compliance
Yes
Sustainability certificates
RoHS
Video
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Performance
Chipset
SN8P2202SG
Data transfer rate (max)
0.48 Gbit/s
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Scan interval
10-20-30-40-50-60 s
Audio channels
2.0
Design
Mean time between failures (MTBF)
419293 h
Product colour
Black
Cable length
1.5 m
Rack mounting
No
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Acrylonitrile butadiene styrene (ABS)
Display
Built-in display
No
Power
Power source
USB
System requirements
Windows operating systems supported
Windows 10- Windows 10 Education- Windows 10 Education x64- Windows 10 Enterprise- Windows 10 Enterprise x64- Windows 10 Home- Windows 10 Home x64- Windows 10 IOT Core- Windows 10 IoT Enterprise- Windows 10 Pro- Windows 10 Pro x64- Windows 10 x64- Windows 11- Windows 11 Enterprise- Windows 11 Enterprise x64- Windows 11 Home- Windows 11 Pro- Windows 11 x64- Windows 7- Windows 7 Enterprise- Windows 7 Enterprise x64- Windows 7 Home Basic- Windows 7 Home Basic x64- Windows 7 Home Premium- Windows 7 Home Premium x64- Windows 7 Professional- Windows 7 Professional x64- Windows 7 Starter- Windows 7 Starter x64- Windows 7 Ultimate- Windows 7 Ultimate x64- Windows 7 x64- Windows 8- Windows 8 Enterprise- Windows 8 Enterprise x64- Windows 8 Pro- Windows 8 Pro x64- Windows 8 x64- Windows 8.1- Windows 8.1 Enterprise- Windows 8.1 Enterprise x64- Windows 8.1 Pro- Windows 8.1 Pro x64- Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina- Mac OS X 10.15.3 Catalina- Mac OS X 11.0 Big Sur- Mac OS X 12.0 Monterey
Other operating systems supported
ChromeOS
Sustainability
Sustainability compliance
Yes
Sustainability certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 90%
Weight & dimensions
Width
90 mm
Depth
125 mm
Height
25 mm
Weight
600 g
Package width
160 mm
Package depth
100 mm
Package height
210 mm
Package weight
700 g
Packaging data
Package width
160 mm
Package depth
100 mm
Package height
210 mm
Package weight
700 g
Packaging content
Quick installation guide
Yes
Logistics data
Master (outer) case width
440 mm
Master (outer) case length
320 mm
Master (outer) case height
345 mm
Products per master (outer) case
12 pc(s)
Other features
Push button
Yes
Hot keys
Yes
Display resolution at frequency
4096x2160 @60Hz 3840x2160 @60Hz 5120x1440 @60Hz 3440x1440 @60Hz 2560x1440 @60Hz 2560x1080 @60Hz 1920x1200 @60Hz 1920x1080 @60Hz
