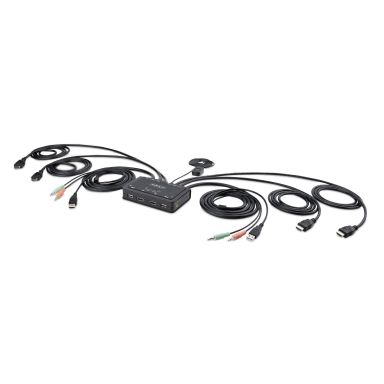

Startech.Com 2-Port Dual-Monitor Hdmi Cable Kvm Switch

Cable length

1.5 m

Console USB ports quantity

2

Console ports

3.5mm headphone- 3.5mm mic- HDMI- USB A

Number of microphone inputs

2

HDMI version

2.1

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

Audio connections

Yes

Headphone outputs

2

HDMI ports quantity

4

Console HDMI ports quantity

2

Product colour

Black

Rack mounting

No

Scan interval

10-20-30-40-50-60 s

Push button

Yes

On Screen Display (OSD)

No

LED indicators

Yes

Hot keys

Yes

IP control

No

Sustainability compliance

Yes

Sustainability certificates

RoHS

HD type

4K Ultra HD

Video bandwidth

60 Hz

Maximum resolution

4096 x 2160 pixels

Chipset

SN8P2202SG

Data transfer rate (max)

0.48 Gbit/s

HD type

4K Ultra HD

Video bandwidth

60 Hz

Maximum resolution

4096 x 2160 pixels

Scan interval

10-20-30-40-50-60 s

Audio channels

2.0

Number of displays supported

2

Mean time between failures (MTBF)

26928 h

Product colour

Black

Cable length

1.5 m

Rack mounting

No

Push button

Yes

LED indicators

Yes

Hot keys

Yes

Housing material

Acrylonitrile butadiene styrene (ABS)

Built-in display

No

On Screen Display (OSD)

No

Power source

USB

Windows operating systems supported

Windows 10- Windows 10 Education- Windows 10 Education x64- Windows 10 Enterprise- Windows 10 Enterprise x64- Windows 10 Home- Windows 10 Home x64- Windows 10 IOT Core- Windows 10 IoT Enterprise- Windows 10 Pro- Windows 10 Pro x64- Windows 10 x64- Windows 11- Windows 11 Enterprise- Windows 11 Enterprise x64- Windows 11 Home- Windows 11 Pro- Windows 11 x64- Windows 7- Windows 7 Enterprise- Windows 7 Enterprise x64- Windows 7 Home Basic- Windows 7 Home Basic x64- Windows 7 Home Premium- Windows 7 Home Premium x64- Windows 7 Professional- Windows 7 Professional x64- Windows 7 Starter- Windows 7 Starter x64- Windows 7 Ultimate- Windows 7 Ultimate x64- Windows 7 x64- Windows 8- Windows 8 Enterprise- Windows 8 Enterprise x64- Windows 8 Pro- Windows 8 Pro x64- Windows 8 x64- Windows 8.1- Windows 8.1 Enterprise- Windows 8.1 Enterprise x64- Windows 8.1 Pro- Windows 8.1 Pro x64- Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.12 Sierra- Mac OS X 10.13 High Sierra- Mac OS X 10.14 Mojave- Mac OS X 10.15 Catalina- Mac OS X 10.15.3 Catalina- Mac OS X 11.0 Big Sur- Mac OS X 12.0 Monterey

Other operating systems supported

ChromeOS

Sustainability compliance

Yes

Sustainability certificates

RoHS

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 90%

Width

127 mm

Depth

83 mm

Height

26 mm

Weight

600 g

Package width

210 mm

Package depth

160 mm

Package height

100 mm

Package weight

800 g

Package width

210 mm

Package depth

160 mm

Package height

100 mm

Package weight

800 g

Quick installation guide

Yes

Master (outer) case width

440 mm

Master (outer) case length

320 mm

Master (outer) case height

345 mm

Products per master (outer) case

12 pc(s)

Push button

Yes

Hot keys

Yes

IP control

No
