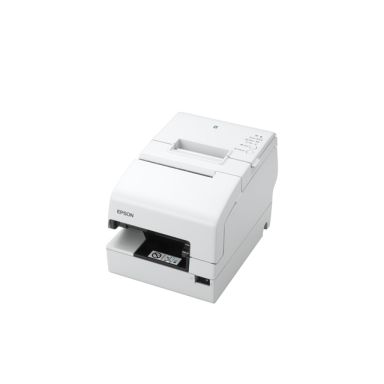

Epson TM-H6000V-213 Thermal POS printer 180 x 180 DPI Wired & Wireless
In Stock
|
Call For Price (0808 189 1246)
Printing
Colour
No
Character sets
ANK
Type
POS printer
Print technology
Dot matrix
Print speed
350 mm/sec
Print speed
5.7 lps
Maximum resolution
180 x 180 DPI
Character size
1.24 x 3.11 mm
Character density
17.8 cpi
Print speed (receipt)
350 mm/sec
Printing characters
Text, Graphic, Barcode
Performance
Character sets
ANK
Type
POS printer
Print technology
Dot matrix
Print speed
350 mm/sec
Print speed
5.7 lps
Maximum resolution
180 x 180 DPI
Character size
1.24 x 3.11 mm
Character density
17.8 cpi
Paper handling
Supported paper width
80 mm
Maximum roll diameter
8.3 cm
Maximum paper size (slip)
230 x 297 mm
Ports & interfaces
Standard interfaces
Ethernet, NFC, RS-232, USB 1.1, USB 2.0
Connectivity technology
Wired & Wireless
USB port
Yes
USB connector
USB Type-A / USB Type-B
Serial interface
Yes
Serial interface type
RS-232
Near Field Communication (NFC)
Yes
Network
Ethernet LAN
Yes
Print technology
Type
POS printer
Print technology
Dot matrix
Print speed
350 mm/sec
Print speed
5.7 lps
Character size
1.24 x 3.11 mm
Character density
17.8 cpi
Column capacity
45 cps / 60 cps
Print quality
Maximum resolution
180 x 180 DPI
Technical details
Pre-installed software
Server Direct Print, ePOS-Display, ePOS-Print
Mean cycles between failures (MCBF)
65000000
Character sets
ANK
Built-in sensors details
Middle of Paper pass sensor, Front cover open sensor, Roll paper cover open sensor, Paper End Sensor, Top of Form sensor, Bottom of Form sensor, Slip eject sensor, Receipt near-end sensor
Product colour
White
Buffer size
4 KB
Autocutter durability
3 million cuts
Products per pallet
56 pc(s)
Cutter
Yes
Quantity per pack
1 pc(s)
Pallet gross width
80 cm
Pallet gross length
120 cm
Pallet gross height
2.18 m
Country of origin
China
Products per pallet layer (UK)
10 pc(s)
Products per pallet layer
8 pc(s)
Products per pallet (UK)
70 pc(s)
Pallet width (UK)
100 cm
Pallet length (UK)
120 cm
Pallet height (UK)
2.18 m
Colour
No
Changeable interface
Yes
Harmonized System (HS) code
84433210
Font size
1.41 mm (W) x 3.39 mm (H) / 0.99 mm (W) x 2.4 mm (H)
Features
Mean cycles between failures (MCBF)
65000000
Character sets
ANK
Built-in sensors details
Middle of Paper pass sensor, Front cover open sensor, Roll paper cover open sensor, Paper End Sensor, Top of Form sensor, Bottom of Form sensor, Slip eject sensor, Receipt near-end sensor
Mean time between failures (MTBF)
180000 h
Product colour
White
Certification
CE, EN55024, EN55032 Class A, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11, Directive 2014/30/EU
Autocutter durability
3 million cuts
Sound pressure level (printing)
55 dB
Cutter
Yes
Print head life
200000000 million characters
Print head life
200 km
Country of origin
China
Sound pressure level (standby)
55 dB
Printer slip unit life
27000000 lines
Printer receipt unit life
20000000 lines
Maximum number of copies (slip)
3 copies
Built-in MICR
Yes
Half-cutter
Yes
Ribbon life (slip)
4 million characters
Paper save function
Yes
Design
Product colour
White
Memory
Buffer size
4 KB
Endurance
Mean time between failures (MTBF)
180000 h
Power
AC input voltage
24 V
Operational conditions
Storage temperature (T-T)
-10 - 50 °C
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
5 - 45 °C
Operating relative humidity (H-H)
10 - 90%
System requirements
Pre-installed software
Server Direct Print, ePOS-Display, ePOS-Print
Certificates
Certification
CE, EN55024, EN55032 Class A, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11, Directive 2014/30/EU
Weight & dimensions
Width
186 mm
Depth
278 mm
Height
181 mm
Package width
294 mm
Package depth
382 mm
Package height
292 mm
Package weight
5.67 kg
Weight
4.4 kg
Packaging data
Package width
294 mm
Package depth
382 mm
Package height
292 mm
Package weight
5.67 kg
Quantity per pack
1 pc(s)
Packaging content
Quantity per pack
1 pc(s)
AC adapter included
Yes
Software
Pre-installed software
Server Direct Print, ePOS-Display, ePOS-Print
Logistics data
Products per pallet
56 pc(s)
Pallet gross width
80 cm
Pallet gross length
120 cm
Pallet gross height
2.18 m
Products per pallet layer (UK)
10 pc(s)
Products per pallet layer
8 pc(s)
Products per pallet (UK)
70 pc(s)
Pallet width (UK)
100 cm
Pallet length (UK)
120 cm
Pallet height (UK)
2.18 m
Harmonized System (HS) code
84433210
Other features
Mean cycles between failures (MCBF)
65000000
Buffer size
4 KB
Print head life
200000000 million characters
Print head life
200 km
Epson TM-H6000V-213 Thermal POS printer 180 x 180 DPI Wired & Wireless
| Length | 38.2 cm |
| Width | 29.4 cm |
| Height | 29.2 cm |
| Weight | 5.67 kgs |
