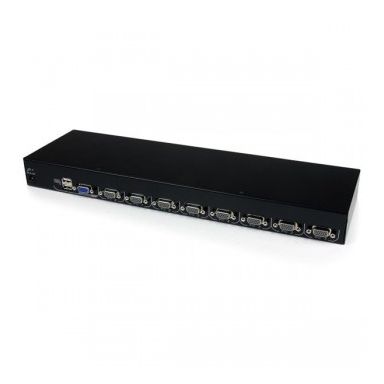

StarTech.com 8 Port USB KVM Switch Module for 1UCABCONS/17/19
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Product colour
Black
Rack mounting
Yes
Plug and Play
Yes
Scan interval
3-8-15-30 s
Number of users
1 user(s)
LED indicators
Yes
IP control
No
Cascadable
Yes
Sustainability certificates
RoHS
Video
Maximum resolution
1920 x 1440 pixels
Maximum analog resolution
1920 x 1440 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
VGA (D-Sub)
USB connector type
USB Type-A
Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
Audio connections
No
Network
Ethernet LAN
No
Performance
DDC2B support
Yes
Daisy chain
Yes
Plug and Play
Yes
Maximum resolution
1920 x 1440 pixels
Scan interval
3-8-15-30 s
Number of users
1 user(s)
Maximum analog resolution
1920 x 1440 pixels
Design
Mean time between failures (MTBF)
72000 h
Product colour
Black
Rack mounting
Yes
LED indicators
Yes
Certification
CE- FCC
Cascadable
Yes
Rack capacity
1U
Housing material
Steel
Display
Built-in display
No
Power
Input current
1.8 A
Output current
0.16666666666667
Power plug type
Type M
Output voltage
12 V
AC input voltage
110-240 V
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
403 mm
Depth
125 mm
Height
40 mm
Weight
1.5 kg
StarTech.com 8 Port USB KVM Switch Module for 1UCABCONS/17/19
| Length | 12.50 cm |
| Width | 40.30 cm |
| Height | 4.00 cm |
| Weight | 1.500000 kgs |
