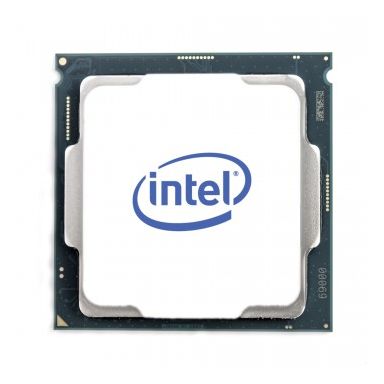

Intel Xeon 6254 processor 3.1 GHz 24.75 MB
In Stock
|
£5146.95
£6176.34 (Inc. VAT)
get it next day (UK Mainland Orders)
Processor
Processor generation
2nd Generation Intel® Xeon® Scalable
Processor base frequency
3.1 GHz
Processor manufacturer
Intel
Cooler included
No
Processor codename
Cascade Lake
Thermal Design Power (TDP)
200 W
Processor cache
24.75 MB
Processor ARK ID
192451
Processor model
6254
Processor threads
36
Processor operating modes
64-bit
Processor boost frequency
4 GHz
Component for
Server/workstation
Processor lithography
14 nm
Processor family
Intel® Xeon® Gold
Processor cores
18
Box
No
Processor socket
FCLGA3647
Memory
Maximum internal memory supported by processor
1024 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2933 MHz
Supported memory types
DDR4-SDRAM
Memory channels
Hexa-channel
ECC
Yes
Graphics
Discrete graphics card
No
On-board graphics card model
Not available
On-board graphics card
No
Discrete graphics card model
Not available
Power
Thermal Design Power (TDP)
200 W
Technical details
Intel TSX-NI
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
PCI Express slots version
3.0
Supported instruction sets
SSE4.2- AVX- AVX 2.0- AVX-512
Scalability
4S
Intel VT-x with Extended Page Tables (EPT)
Yes
Embedded options available
No
Product type
Processor
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Thermal Design Power (TDP)
200 W
Supported memory types
DDR4-SDRAM
Status
Launched
Market segment
Server
Launch date
Q2'19
Intel Virtualization Technology (VT-x)
Yes
Number of UPI links
3
Memory speed (max)
2933 MHz
AVX-512 Fused Multiply-Add (FMA) units
2
Target market
Cloud Computing
Servicing status
Baseline Servicing
Features
Maximum number of PCI Express lanes
48
Thermal Design Power (TDP)
200 W
Processor package size
76mm x 56.5mm
Processor ARK ID
192451
Execute Disable Bit
Yes
PCI Express slots version
3.0
Supported instruction sets
SSE4.2- AVX- AVX 2.0- AVX-512
Scalability
4S
Embedded options available
No
Market segment
Server
Harmonized System (HS) code
85423119
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159
PCI Express CEM revision
3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Intel Turbo Boost Max Technology 3.0
No
Intel® Speed Shift Technology
Yes
Intel TSX-NI
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Virtualization Technology (VT-x)
Yes
AVX-512 Fused Multiply-Add (FMA) units
2
Intel® Volume Management Device (VMD)
Yes
Intel® Speed Select technology - Performance Profile (Intel® SST-PP)
No
Intel® Optane™ DC Persistent Memory Supported
Yes
Intel® Deep Learning Boost (Intel® DL Boost)
Yes
Mode-based Execute Control (MBE)
Yes
Intel® Run Sure Technology
Yes
Intel® Resource Director Technology (Intel® RDT)
Yes
Intel® vPro™ Platform Eligibility
Yes
Intel® Speed Select Technology - Base Frequency (Intel® SST-BF)
No
Intel® Optane™ DC Persistent Memory technology
Yes
Intel Speed Select Technology (SST)
No
Intel® Transactional Synchronization Extensions
Yes
Operational conditions
Tcase
82 °C
Logistics data
Harmonized System (HS) code
85423119
Weight & dimensions
Processor package size
76mm x 56.5mm
Other features
Maximum internal memory
1000 GB
Intel Xeon 6254 Processor 3.1 GHz 24.75 MB
Designed for enterprise workloads, data centers, and mission-critical applications, Intel Xeon Gold 6254 UK is a high-performance server-class processor, supporting strong compute power, reliability, and scalability for demanding environments.
Key Features of Xeon Gold 6254 3.1 GHz 18-core Server CPU UK:
-
Total Cores: 18
-
Total Threads: 36
-
Max Turbo Frequency: 4.00 GHz
-
Processor Base Frequency: 3.10 GHz
-
Cache: 24.75 MB
-
Max # of UPI Links: 3
-
TDP: 200 W
Here is a detailed description of Intel Xeon 6254 specifications UK.
Performance & Architecture:
GA 3647 processor UK is based upon Intel Cascade Lake (14 nm) architecture, supporting Hyper-Threading Technology for improved multitasking, making this high-performance computing processor suitable for virtualization, databases, analytics, and cloud workloads.
Memory & Scalability:
Intel CD8069504194501 is provided with 1TB maximum memory size, featuring DDR4-2933 memory type, 2933 MHz maximum memory speed, 6 maximum memory channels, Intel® Optane™ Persistent Memory, and ECC Memory. You can thus deploy this virtualization server processor for data-intensive applications.
Enterprise-Grade Capabilities:
24.75 MB cache Xeon UK is equipped with high-end capabilities, including:
-
Intel® Deep Learning Boost (Intel® DL Boost) on CPU
-
Intel® Speed Select Technology
-
Intel® Speed Select Technology
-
Intel® Resource Director Technology (Intel® RDT)
-
Intel® Speed Shift Technology
-
Intel® Hyper-Threading Technology
-
Intel® Transactional Synchronization Extensions
-
Instruction Set Extensions: Intel® SSE4.2, Intel® AVX, Intel® AVX2, Intel® AVX-512
-
# of AVX-512 FMA Units
-
Enhanced Intel SpeedStep® Technology
-
Intel® Volume Management Device (VMD)
| Weight | 0.61 kgs |
