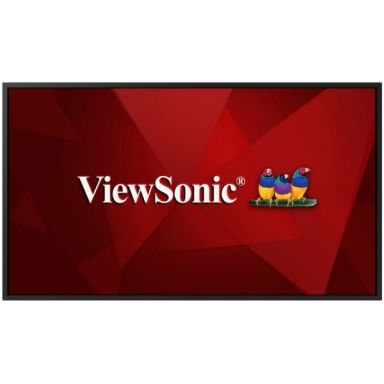

Viewsonic CDE5520 Signage Display Digital signage flat panel 139.7 cm (55") IPS 400 cd/m² 4K Ultra HD Black Built-in processor Android 8.0
In Stock
|
$1137.14
$1364.57 (Inc. VAT)
Display
Display number of colours
1.07 billion colours
LED backlighting type
Direct-LED
Touchscreen
No
Active display area (W x H)
1209.6 x 680.4 mm
Display technology
IPS
Display diagonal
139.7 cm (55")
Display resolution
3840 x 2160 pixels
Display brightness
400 cd/m²
HD type
4K Ultra HD
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.315 x 0.315 mm
Display diagonal (metric)
139.7 cm
Panel life
30000 h
Native aspect ratio
16:9
Anti-glare screen
Yes
Surface hardness
2H
Haze rate
3%
Ports & interfaces
Remote (IR) output
1
Remote (IR) input
1
USB port
Yes
Wi-Fi
No
PC Audio in
Yes
Ethernet LAN
Yes
HDMI ports quantity
2
DVI port
Yes
Ethernet LAN (RJ-45) ports
1
RS-232 interface
Yes
USB version
2.0
USB ports quantity
2
HDMI input ports quantity
2
Audio
Number of built-in speakers
2
RMS rated power
20 W
Built-in speaker(s)
Yes
Design
Product design
Digital signage flat panel
Placement supported
Indoor
Orientation
Horizontal
Product colour
Black
Panel mounting interface
400 x 200 mm
Certification
cULus, FCC, Energy Star, TUV Mexico, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEE, RCM
VESA mounting
Yes
Anti-glare screen
Yes
Performance
Purpose
Universal
Wi-Fi
No
Panel life
30000 h
Power
Power consumption (typical)
100 W
Power consumption (standby)
0.5 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Energy efficiency scale
A to G
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
87 kWh
Computer system
Computer system
Yes
Processor family
ARM Cortex
Processor frequency
1.4 GHz
Operating system installed
Android 8.0
Internal storage capacity
16 GB
Video formats supported
ASF, AVI, AVS, AVS+, DIVX, FLV, H.263, H.264, H.265, HEVC, M-JPEG, MP4, MPEG, MPEG1, MPEG2, MPEG4, MVC, RM, VC-1, VP8, VP9, WMV, WMV3, XVID
Audio formats supported
MP3
Image formats supported
BMP, JPEG, PNG
Built-in processor
Yes
Weight & dimensions
Width
1243.2 mm
Depth
74.8 mm
Height
714 mm
Weight
16.8 kg
Packaging data
Package width
1420 mm
Package depth
245 mm
Package height
910 mm
Package weight
23.9 kg
Batteries included
Yes
Remote control included
Yes
Cables included
AC, HDMI, RS-232
Packaging content
Batteries included
Yes
Remote control included
Yes
Cables included
AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Storage temperature (T-T)
-10 - 60 °C
Storage relative humidity (H-H)
10 - 80%
Certificates
Certification
cULus, FCC, Energy Star, TUV Mexico, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEE, RCM
Technical details
VESA mounting
Yes
LED backlighting type
Direct-LED
Sustainability certificates
ENERGY STAR, ErP
Compliance certificates
CE, REACH, RoHS
Thin Client
Processor family
ARM Cortex
Processor frequency
1.4 GHz
Operating system installed
Android 8.0
Internal storage capacity
16 GB
Video formats supported
ASF, AVI, AVS, AVS+, DIVX, FLV, H.263, H.264, H.265, HEVC, M-JPEG, MP4, MPEG, MPEG1, MPEG2, MPEG4, MVC, RM, VC-1, VP8, VP9, WMV, WMV3, XVID
Audio formats supported
MP3
Image formats supported
BMP, JPEG, PNG
Logistics data
Harmonized System (HS) code
85285210
Features
Harmonized System (HS) code
85285210
Other features
Wi-Fi
No
Display technology
IPS
Energy efficiency scale
A to G
Viewsonic CDE5520 Signage Display Digital signage flat panel 139.7 cm (55") IPS 400 cd/m² 4K Ultra HD Black Built-in processor Android 8.0
