Performance | |
---|---|
USB connector form factor | Straight |
Chipset | PERICOM - PI3DPX1203- VIA/VLI - VL100 |
Supported graphics resolutions | 1280 x 720 (HD 720)- 1280 x 768 (WXGA)- 1280 x 768- 1280 x 800- 1360 x 768 (WXGA)- 1440 x 900 (WXGA+)- 1600 x 900- 1680 x 1050 (WSXGA+)- 1920 x 1080 (HD 1080)- 1920 x 1200 (WUXGA)- 2048 x 1280- 2560 x 1600 (WQXGA)- 3840 x 2160 |
USB connector type | USB Type-C |
USB connector gender | Male |
Data transfer rate (max) | 21.6 Gbit/s |
DVI output | No |
HDMI output | No |
DisplayPort output | Yes |
Number of displays supported | 1 |
HDCP | Yes |
DisplayPort version | 1.2 |
Maximum resolution | 3840 x 2160 pixels |
Refresh rate at maximum resolution | 60 Hz |
Audio output channels | 7.1 channels |
Certification | FCC- CE- REACH |
HDCP version | 1.4/2.2 |
Design | |
Product colour | Black |
Housing material | Plastic |
Integrated USB cable | Yes |
USB cable length | 0.1 m |
Technical details | |
Products per master (outer) case | 60 pc(s) |
Master (outer) case width | 330 mm |
Master (outer) case length | 525 mm |
Master (outer) case height | 315 mm |
Sustainability certificates | RoHS |
Harmonized System (HS) code | 84733020 |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 70 °C |
Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions | |
Width | 43 mm |
Depth | 187 mm |
Height | 12 mm |
Weight | 22 g |
Package width | 145 mm |
Package depth | 170 mm |
Package height | 30 mm |
Package weight | 100 g |
Logistics data | |
Products per master (outer) case | 60 pc(s) |
Master (outer) case width | 330 mm |
Master (outer) case length | 525 mm |
Master (outer) case height | 315 mm |
Harmonized System (HS) code | 84733020 |

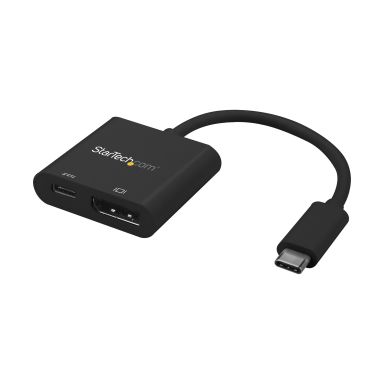

StarTech.com USB-C to DisplayPort Adapter with USB Power Delivery - 4K 60Hz
