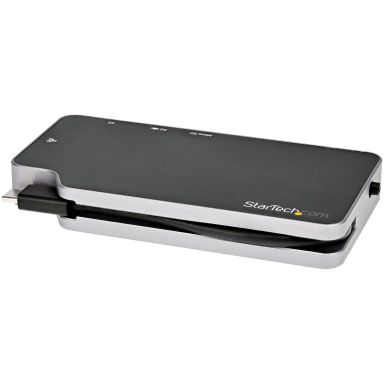

StarTech.com USB C Multiport Adapter - USB-C to 4K HDMI or VGA Video with 100W Power Delivery Pass-through, 2-Port 10Gbps USB Hub, MicroSD, GbE - USB 3.1 Gen 2 Type-C Mini/Travel Dock

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

VGA (D-Sub) ports quantity

1

Microphone in

No

Connectivity technology

Wired

USB Power Delivery

Yes

USB Power Delivery revision

3.0

USB Power Delivery up to

100 W

Networking standards

IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u

Wake-on-LAN ready

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN (RJ-45) ports

1

Maximum digital resolution

3840 x 2160 pixels

Number of displays supported

1

Product colour

Black, Grey

Card reader integrated

Yes

LED indicators

Yes

Data transfer rate

10 Gbit/s

Compatible memory cards

MicroSD (TransFlash)

Certification

CE, FCC, RoHS

HD type

4K Ultra HD

Housing material

Aluminium, Plastic

Maximum refresh rate

60 Hz

Product colour

Black, Grey

Data transfer rate

10 Gbit/s

Cable length

0.13 m

Harmonized System (HS) code

84733020

Products per master (outer) case

70 pc(s)

Master (outer) case width

473 mm

Master (outer) case length

331 mm

Master (outer) case height

440 mm

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash)

Power consumption (typical)

15 W

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

LED indicators

Yes

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-10 - 55 °C

Operating relative humidity (H-H)

5 - 90%

Weight

124.3 g

Width

125 mm

Depth

68 mm

Height

16 mm

Package weight

138.3 g

Package width

142 mm

Package depth

170 mm

Package height

30 mm

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

Product colour

Black, Grey

LED indicators

Yes

Certification

CE, FCC, RoHS

Package weight

138.3 g

Package width

142 mm

Package depth

170 mm

Package height

30 mm

Quick start guide

Yes

Certification

CE, FCC, RoHS

Products per master (outer) case

70 pc(s)

Master (outer) case width

473 mm

Master (outer) case length

331 mm

Master (outer) case height

440 mm

Harmonized System (HS) code

84733020

Chipset

Realtek - RTD2141DS, Realtek - RTS5423, Realtek - RTL8153B, Realtek - RTS5306

Cable length

0.13 m
