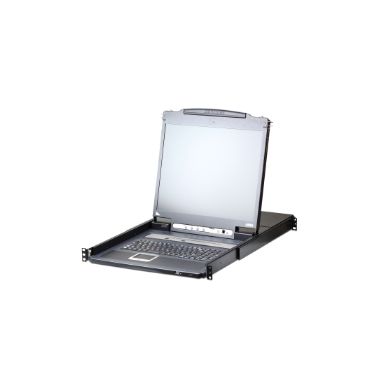

Aten CL5708iM KVM switch Rack mounting Black
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Product colour
Black
Rack mounting
Yes
Hot-Plug support
Yes
Scan interval
1-255 s
Push button
Yes
On Screen Display (OSD)
Yes
LED indicators
Yes
Hot keys
Yes
Sustainability certificates
RoHS
Video
HD type
Full HD
Maximum resolution
1920 x 1200 pixels
Ports & interfaces
USB connector type
USB Type-A
Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
VGA (D-Sub) ports quantity
9
Ethernet LAN (RJ-45) ports
1
Network
Networking topology
Tree topology
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Performance
DDC2B support
Yes
Daisy chain
Yes
Firmware upgradeable
Yes
HD type
Full HD
Hot-Plug support
Yes
Maximum resolution
1920 x 1200 pixels
Scan interval
1-255 s
Design
Display switch button
Yes
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Rack capacity
1U
Housing material
Metal- Plastic
Display
Built-in display
Yes
Display
LCD
On Screen Display (OSD)
Yes
Display diagonal
43.2 cm (17")
Power
Input current
0.041666666666667
Power source
AC
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Power consumption (typical)
16 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
480 mm
Depth
642.7 mm
Height
44 mm
Weight
13.5 kg
Aten CL5708iM KVM switch Rack mounting Black
