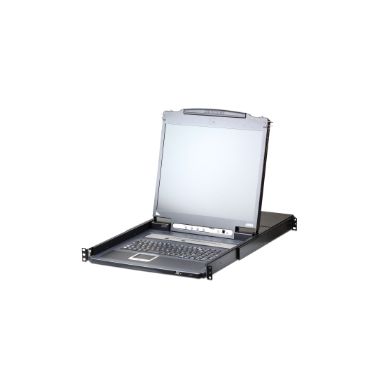

Aten CL5716IM KVM switch Rack mounting Black

Console ports

RJ–45, USB A, VGA (D-Sub)

USB connector type

USB Type-A

Number of computers controlled

16

Keyboard port type

USB

Mouse port type

USB

Video port type

VGA

USB 2.0 ports quantity

1

VGA (D-Sub) ports quantity

17

Ethernet LAN (RJ-45) ports

1

Networking topology

Tree topology

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

DDC2B support

Yes

Daisy chain

Yes

Firmware upgradeable

Yes

HD type

Full HD

Hot-Plug support

Yes

Maximum resolution

1920 x 1200 pixels

Scan interval

1,255 s

Maximum digital resolution

1920 x 1200 pixels

Product colour

Black

Rack mounting

Yes

Hot-Plug support

Yes

Scan interval

1,255 s

Push button

Yes

On Screen Display (OSD)

Yes

LED indicators

Yes

Hot keys

Yes

Compliance certificates

RoHS

Display switch button

Yes

Keyboard language

Chinese Traditional, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English

Product colour

Black

Rack mounting

Yes

Push button

Yes

LED indicators

Yes

Hot keys

Yes

Rack capacity

1U

Housing material

Metal, Plastic

Built-in display

Yes

Display

LCD

On Screen Display (OSD)

Yes

Display diagonal

43.2 cm (17")

Input current

1 A

Power source

AC

AC input frequency

50 - 60 Hz

Power consumption (typical)

18 W

Input voltage

100 - 240 V

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

HD type

Full HD

Maximum resolution

1920 x 1200 pixels

Maximum digital resolution

1920 x 1200 pixels

Compliance certificates

RoHS

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

480 mm

Depth

642.7 mm

Height

44 mm

Weight

13.6 kg

Rack mount kit

Yes

Cables included

AC, Phone (RJ-11), USB, VGA

Manual

Yes

Push button

Yes

Hot keys

Yes
