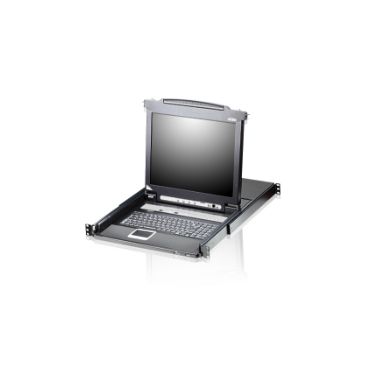

Aten Cl5716m-Ata-Ee Kvm Switch Rack Mounting
In Stock
|
£1030.81
£1236.97 (Inc. VAT)
Technical details
Product colour
Black
Rack mounting
Yes
Hot-Plug support
Yes
Scan interval
1-255 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Sustainability certificates
RoHS
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Ports & interfaces
Console ports
VGA (D-Sub)
Number of computers controlled
512
Keyboard port type
USB- PS/2
Mouse port type
USB- PS/2
Video port type
VGA
VGA (D-Sub) ports quantity
16
Performance
DDC2B support
Yes
Daisy chain
Yes
Hot-swap
Yes
Firmware upgradeable
Yes
HD type
WUXGA
Video bandwidth
60 Hz
Hot-Plug support
Yes
Maximum resolution
1920 x 1200 pixels
Scan interval
1-255 s
Design
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Rack capacity
1U
Housing material
Metal- Plastic
Display
Built-in display
Yes
Display
LCD
Display diagonal
43.2 cm (17")
Power
Input current
1 A
Power source
AC
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
25.8 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
480 mm
Depth
642.7 mm
Height
44 mm
Weight
13.6 kg
Packaging content
Rack mount kit
Yes
Cables included
AC- KVM
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
Aten Cl5716m-Ata-Ee Kvm Switch Rack Mounting
| Length | 64.27 cm |
| Width | 48.00 cm |
| Height | 4.40 cm |
| Weight | 13.600000 kgs |
