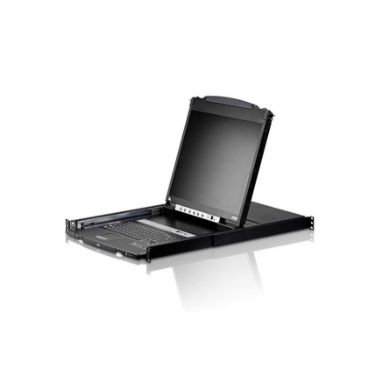

Aten CL5816N KVM switch Rack mounting Black
In Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Console USB ports quantity
1
Console ports
USB A, VGA (D-Sub)
Number of computers controlled
512
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
VGA (D-Sub) ports quantity
17
DC-in jack
No
Cable lock slot
Yes
Performance
DDC2B support
Yes
Daisy chain
Yes
Firmware upgradeable
Yes
HD type
SXGA
Video bandwidth
75 Hz
Hot-Plug support
Yes
Maximum resolution
1280 x 1024 pixels
Scan interval
1,255 s
Cable lock slot
Yes
Technical details
Product colour
Black
Rack mounting
Yes
Hot-Plug support
Yes
Scan interval
1,255 s
Push button
Yes
On Screen Display (OSD)
Yes
LED indicators
Yes
Hot keys
Yes
Compliance certificates
RoHS
Design
Cable lock slot
Yes
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Rack capacity
1U
Housing material
Metal
Display
Built-in display
Yes
Display
LCD
On Screen Display (OSD)
Yes
Display diagonal
48.3 cm (19")
Power
Input current
1 A
Power source
AC
AC input frequency
50 - 60 Hz
Power consumption (typical)
26.8 W
Input voltage
100-240 V
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Other operating systems supported
Yes
Video
HD type
SXGA
Video bandwidth
75 Hz
Maximum resolution
1280 x 1024 pixels
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
480 mm
Depth
680.4 mm
Height
44 mm
Weight
14.8 kg
Packaging content
Cables included
AC, KVM
Quick installation guide
Yes
Other features
Push button
Yes
Hot keys
Yes
Aten CL5816N KVM switch Rack mounting Black
| Length | 68.04 cm |
| Width | 48 cm |
| Height | 4.4 cm |
| Weight | 14.80 kgs |
