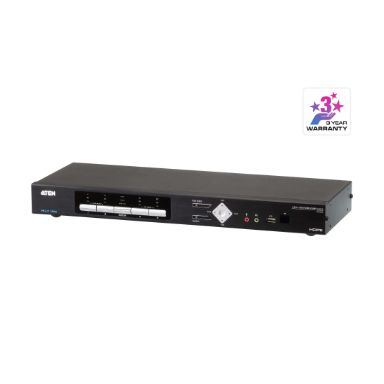

Aten Cm1284-At-E Kvm Switch Rack Mounting
0 Reviews
| Add your review
In Stock
|
£1931.55
£2317.86 (Inc. VAT)
| Technical details | |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Hot-Plug support | Yes |
| Scan interval | 5-10-15-30-60-90 s |
| Push button | Yes |
| On Screen Display (OSD) | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| USB hub | Yes |
| Cascadable | Yes |
| Sustainability certificates | RoHS |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Maximum resolution | 4096 x 2160 pixels |
| Ports & interfaces | |
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone- HDMI- RJ–45- USB A |
| HDCP | Yes |
| USB connector type | USB Type-A- USB Type-B |
| Number of microphone inputs | 6 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 6 |
| HDMI ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB hub | Yes |
| USB 2.0 Type-B ports quantity | 4 |
| USB 2.0 Type-A hub ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Performance | |
| Daisy chain | Yes |
| HDCP | Yes |
| Firmware upgradeable | Yes |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Hot-Plug support | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 5-10-15-30-60-90 s |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Cascadable | Yes |
| Rack capacity | 1U |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Input current | 1 A |
| Power source | AC |
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 16 W |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 164 mm |
| Height | 44 mm |
| Weight | 3.86 kg |
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.26 kg |
| Packaging data | |
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.26 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | HDMI- USB |
| Manual | Yes |
| AC adapter included | Yes |
| Other features | |
| Push button | Yes |
| Hot keys | Yes |
