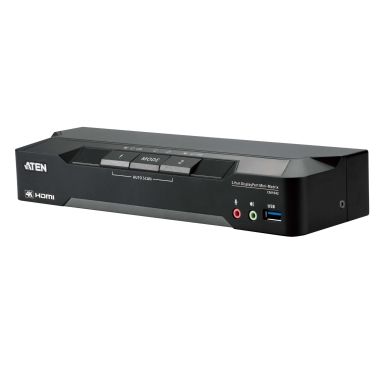

ATEN 2P 4K DP Dual Display Mini-Matrix

Console ports

3.5mm headphone, 3.5mm mic, HDMI, USB A

Number of microphone inputs

4

DisplayPorts quantity

4

DisplayPort version

1.2

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Audio connections

Yes

Headphone outputs

4

DC-in jack

Yes

USB hub

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

2

Console HDMI ports quantity

2

HDCP

Yes

HDCP

Yes

Data transfer rate (max)

5 Gbit/s

HD type

4K Ultra HD

Maximum resolution

4096 x 2160 pixels

Scan interval

1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s

Product colour

Black

Scan interval

1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99 s

Push button

Yes

LED indicators

Yes

Hot keys

Yes

USB hub

Yes

Product colour

Black

Push button

Yes

LED indicators

Yes

Hot keys

Yes

Housing material

Metal

Built-in display

No

Power source

DC

Power consumption (typical)

11.58 W

Input voltage

12 V

HD type

4K Ultra HD

Maximum resolution

4096 x 2160 pixels

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

71.8 mm

Depth

260 mm

Height

42.5 mm

Weight

640 g

Push button

Yes

Hot keys

Yes
