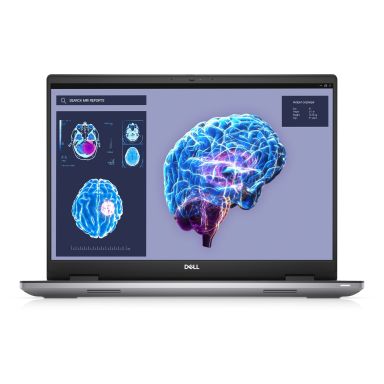

DELL Precision 7680 Intel® Core™ i9 i9-13950HX Mobile workstation 40.6 cm (16") Full HD+ 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 3500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro UK English Grey
In Stock
|
Call For Price (0808 189 1246)
Design
Product type
Mobile workstation
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Intel® vPro™ Platform Eligibility
Yes
Introduction year
2023
Display
HD type
Full HD+
Pixel density
142 ppi
Panel type
WLED
LED backlight
Yes
Display brightness
500 cd/m²
Contrast ratio (typical)
1300:1
Touchscreen
No
Display resolution
1920 x 1200 pixels
Display diagonal
40.6 cm (16")
Anti-glare screen
Yes
Maximum refresh rate
60 Hz
RGB colour space
DCI-P3
Colour gamut
100%
Native aspect ratio
16:10
Processor
Processor generation
13th gen Intel® Core™ i9
Bus type
DMI4
Configurable TDP-down
45 W
Processor cache type
Smart Cache
Processor cache
36 MB
Processor model
i9-13950HX
Processor boost frequency
5.5 GHz
Processor cores
24
Processor manufacturer
Intel
Processor family
Intel® Core™ i9
Efficient-core boost frequency
4 GHz
Memory
Memory form factor
CAMM module
Internal memory
32 GB
Memory layout (slots x size)
1 x 32 GB
Internal memory type
DDR5-SDRAM
Memory clock speed
5600 MHz
Maximum internal memory
128 GB
Memory channels
Dual-channel
Non-ECC
Yes
Storage
SSD form factor
M.2
Storage media
SSD
Optical drive type
No
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
Card reader integrated
Yes
Compatible memory cards
SD, SDHC, SDXC
Total storage capacity
1 TB
Total SSDs capacity
1 TB
NVMe
Yes
Graphics
Discrete graphics card
Yes
Discrete graphics card memory
12 GB
On-board graphics card
Yes
On-board graphics card model
Intel® UHD Graphics
Discrete graphics card model
NVIDIA RTX 3500 Ada
Discrete graphics memory type
GDDR6
On-board GPU manufacturer
Intel
Audio
Audio chip
Realtek ALC3281
Number of microphones
2
Number of built-in speakers
2
Speaker power
2 W
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution (numeric)
0.92 MP
Front camera resolution
1920 x 1080 pixels
Video capturing speed
30 fps
Front camera HD type
Full HD
Infrared (IR) camera
Yes
Optical drive
Optical drive type
No
Network
Mobile network connection
No
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Bluetooth
Yes
Wi-Fi data rate (max)
2400 Mbit/s
Antenna type
2x2
WLAN controller manufacturer
Intel
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
0
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Power adapter barrel connector
7.4 mm
DC-in jack
Yes
Performance
Ambient light sensor
Yes
Accelerometer
Yes
Hall sensor
Yes
Keyboard
Pointing device
Touchpad
Numeric keypad
Yes
Keyboard number of keys
100
Keyboard backlit
Yes
Keyboard language
UK English
Software
Operating system language
Multilingual
Operating system architecture
64-bit
Trial software
No Microsoft Office License Included 30 day Trial Offer Only
Operating system installed
Windows 11 Pro
Technical details
Market positioning
Business
Form factor
Clamshell
Product colour
Grey
Discrete graphics card memory
12 GB
Processor special features
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Flex Memory Access
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Embedded options available
No
CPU configuration (max)
1
Intel Virtualization Technology (VT-x)
Yes
Intel® vPro™ Platform Eligibility
Yes
Battery
Battery technology
Lithium-Ion (Li-Ion)
Number of battery cells
6
Battery capacity
93 Wh
Battery recharge time
3 h
Battery voltage
11.55 V
Fast charging
Yes
Battery weight
410 g
Power
AC adapter power
240 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
AC adapter output current
12.3 A
AC adapter output voltage
19.5 V
DC-in jack
Yes
Security
Password protection
Yes
Cable lock slot type
Wedge
Trusted Platform Module (TPM)
Yes
Cable lock slot
Yes
Smart card reader
Yes
Trusted Platform Module (TPM) version
2.0
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
-15.2 - 3048 m
Non-operating altitude
-15.2 - 10668 m
Operating shock
110 G
Non-operating shock
160 G
Operating vibration
0.66 G
Non-operating vibration
1.3 G
Sustainability
Total carbon footprint (kg of CO2e)
471
Weight & dimensions
Width
356 mm
Depth
258.3 mm
Height (front)
2.23 cm
Height (rear)
2.32 cm
Weight
2.6 kg
Packaging data
Cables included
AC
Other features
Wi-Fi data rate (max)
2400 Mbit/s
Ambient light sensor
Yes
WLAN controller model
Intel Wi-Fi 6E AX211
On-board graphics card
Yes
Anti-glare screen
Yes
Sensors
Ambient light sensor
Yes
Accelerometer
Yes
Carbon footprint
Total carbon footprint (kg of CO2e)
471
Total carbon emissions, w/o use phase (kg of CO2e)
405.209
Total carbon emissions, standard deviation (kg of CO2e)
93
PAIA version
1.3.2, 2022
Carbon emissions, energy usage (kg of CO2e)
65.791
Carbon emissions, manufacturing (kg of CO2e)
386.33
Carbon emissions, logistics (kg of CO2e)
16.322
Carbon emissions, end-of-life (kg of CO2e)
2.06
Packaging content
Cables included
AC
DELL Precision 7680 Intel® Core™ i9 i9-13950HX Mobile workstation 40.6 cm (16") Full HD+ 32 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX 3500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro UK English Grey
Designed for demanding professional workloads like CAD, simulations, and content creation, Dell Precision 7680 i9-13950HX UK is a high-end 16-inch mobile workstation that comes with a powerful 13th Gen Intel Core i9 processor with 24 cores and up to 5.5 GHz turbo boost, paired with 32 GB DDR5-SDRAM and a 1 TB SSD for robust multitasking and fast storage.
Key Features of Dell Precision 7680 32GB RAM 1TB SSD UK:
-
Colour: Grey
-
Video Memory: 12 GB GDDR6 SDRAM
-
Graphics: NVIDIA RTX 3500 Ada
-
Memory: 32 GB DDR5 (1 x 32 GB)
-
Display: 16" WLED 1920 x 1200 / Full HD Plus @ 60 Hz - 142 ppi
-
Networking: Bluetooth, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Gigabit Ethernet
-
Interfaces: HDMI ¦ 2 x USB4 (supports Thunderbolt 4, DisplayPort 1.4 Alt Mode) ¦ USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode) ¦ USB 3.2 Gen 1 (PowerShare) ¦ USB 3.2 Gen 1 ¦ LAN ¦ Headphone/microphone combo jack
-
Storage: 1 TB, M.2 2280, Gen 4 PCIe NVMe, SSD
-
CPU: 13th Gen Intel® Core™ i9-13950HX, vPro® (36MB cache, 24 cores, 32 threads, up to 5.5 GHz Turbo, 55W)
Here is a detailed breakdown of Dell Precision 7680 workstation specs.
Intel Core i9 13950HX Processor:
Dell Precision 7680 is provided with an Intel Core i9-13950HX CPU that supports 36MB cache, 24 cores, 32 threads, and up to 5.5 GHz Turbo speed. 24 cores and 32 threads allow seamless multitasking, and up to 5.5 GHz Turbo Boost supports burst-heavy workloads such as compiling large codebases or rendering video. Users can thus deploy this workstation for software development, simulation, rendering, and other intensive tasks.
32GB RAM & 1TB SSD Storage:
This professional mobile workstation UK is provided with 32 GB DDR5 memory that supports 5600 MHz clock speed, making this mobile workstation suitable for heavy multitasking, large datasets, virtual machines, and professional editing suites.
1 TB PCIe Gen4 NVMe SSD storage supports high read/write speeds for quick boot-ups and application loading and sufficient space for storing large projects, media files, and software libraries used in professional work.
16-inch Full HD+ Mobile Workstation UK:
Windows 11 Pro mobile workstation UK features a 16-inch Full HD display, supporting Non-Touch, FHD+ resolution, WLED, WVA, Anti-Glare, 500 nits brightness, 100% DCI-P3, and more. Furthermore, the 16:10 aspect ratio offers more vertical space, the anti-glare WLED panel comes with a wide viewing angle, and 100 % DCI-P3 coverage makes this display suitable for color-critical work in design and media creation.
NVIDIA RTX 3500 Ada Performance:
Dell Precision 7680 13th gen i9 UK is provided with a GeForce RTX 3500 GPU, delivering superb graphics for rendering and simulation, making it a great choice for 3D rendering, CAD, simulation, and GPU-accelerated compute tasks.
Ports & Connectivity:
The Dell Precision 7680 workstation is equipped with wide-ranging connectivity options, allowing users to connect with external devices and ensure fast data transfer. For instance, it comes with:
-
2x USB 3.0
-
3x USB-C
-
1x HDMI
-
Gigabit Ethernet
-
Wi-Fi: WiFi 6E
-
Bluetooth: Bluetooth 5.3
| Length | 25.83 cm |
| Width | 35.60 cm |
| Height | 2.23 cm |
| Weight | 4.00 kgs |
