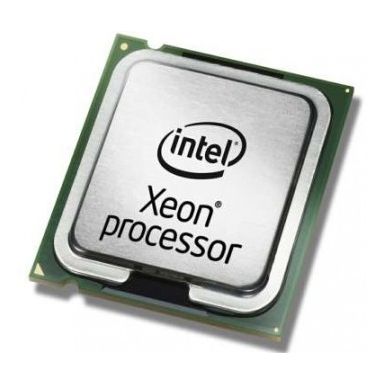

Intel Xeon E5-2640V3 processor 2.6 GHz 20 MB L3
In Stock
|
Call For Price (0808 189 1246)
Processor
Processor base frequency
2.6 GHz
Processor manufacturer
Intel
Cooler included
No
Processor codename
Haswell
Memory bandwidth supported by processor (max)
59 GB/s
Thermal Design Power (TDP)
90 W
Processor cache
20 MB
Processor ARK ID
83359
Processor model
E5-2640V3
Processor threads
16
System bus rate
8 GT/s
Processor operating modes
64-bit
VID Voltage Range
0.65 - 1.3 V
Processor boost frequency
3.4 GHz
Stepping
R2
Number of QPI links
2
Bus type
QPI
Component for
Server/workstation
Processor lithography
22 nm
Processor family
Intel Xeon E5 v3
Processor cores
8
Box
No
Processor socket
LGA 2011-v3
Processor series
Intel Xeon E5-2600 v3
Processor cache type
Smart Cache
Memory
Maximum internal memory supported by processor
768 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
1600-1866 MHz
Memory bandwidth supported by processor (max)
59 GB/s
Supported memory types
DDR4-SDRAM
Memory channels
Quad-channel
ECC
Yes
Graphics
On-board graphics card
No
Power
Thermal Design Power (TDP)
90 W
VID Voltage Range
0.65 - 1.3 V
Technical details
Intel TSX-NI
No
Intel® Secure Key
Yes
Thermal Monitoring Technologies
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Identity Protection Technology (Intel® IPT)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Flex Memory Access
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Idle States
Yes
Execute Disable Bit
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel® Virtualization Technology (Intel® VT)
VT-d- VT-x
PCI Express slots version
3.0
PCI Express configurations
1x4- 1x8- 1x16
Supported instruction sets
AVX 2.0
Scalability
2S
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Enhanced Halt State
Yes
Intel Demand Based Switching
Yes
Embedded options available
Yes
CPU configuration (max)
2
Product type
Processor
Processor cache
20480 KB
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Thermal Design Power (TDP)
90 W
Supported memory types
DDR4-SDRAM
Status
Launched
Processor series
Intel Xeon E5-2600 v3
Physical Address Extension (PAE)
46 bit
Market segment
Server
Launch date
Q3'14
Intel Virtualization Technology (VT-x)
Yes
Intel Secure Key Technology version
1.00
Intel Identity Protection Technology version
0.00
Processor cache type
Smart Cache
Bus type units
GT/s
Bus bandwidth
8
Maximum memory
768 GB
Intel TSX-NI version
0.00
Processor brand name
Intel Xeon v2
Last change
63903513
Product family
Intel Xeon Processor E5 v3 Family
Bus speed
8 GT/s
Servicing status
End of Servicing Updates
End of servicing updates date
Friday- December 31- 2021
Features
Maximum number of PCI Express lanes
40
Thermal Design Power (TDP)
90 W
Processor package size
52.5mm x 45mm
Processor ARK ID
83359
Thermal Monitoring Technologies
Yes
Idle States
Yes
Execute Disable Bit
Yes
PCI Express slots version
3.0
PCI Express configurations
1x4- 1x8- 1x16
Supported instruction sets
AVX 2.0
Scalability
2S
Embedded options available
Yes
CPU configuration (max)
2
Physical Address Extension (PAE)
46 bit
Market segment
Server
Harmonized System (HS) code
85423119
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159
PCI Express CEM revision
3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel 64
Yes
Conflict-Free processor
No
Intel® OS Guard
Yes
Intel TSX-NI
No
Intel® Secure Key
Yes
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
Yes
Intel® Identity Protection Technology (Intel® IPT)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Flex Memory Access
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel® Virtualization Technology (Intel® VT)
VT-d- VT-x
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Enhanced Halt State
Yes
Intel Demand Based Switching
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Secure Key Technology version
1.00
Intel Identity Protection Technology version
0.00
Intel TSX-NI version
0.00
Intel® vPro™ Platform Eligibility
Yes
Intel® Turbo Boost Technology 2.0 frequency
3.4 GHz
Intel® Transactional Synchronization Extensions
No
Operational conditions
Tcase
74.3 °C
Packaging data
Package type
Retail box
Logistics data
Harmonized System (HS) code
85423119
Weight & dimensions
Processor package size
52.5mm x 45mm
Other features
Intel® Virtualization Technology (Intel® VT)
VT-d- VT-x
Maximum internal memory
786432 MB
Maximum internal memory
768 GB
CPU configuration (max)
2
Intel Xeon E5-2640V3 processor 2.6 GHz 20 MB L3
| Weight | 1.00 kgs |
