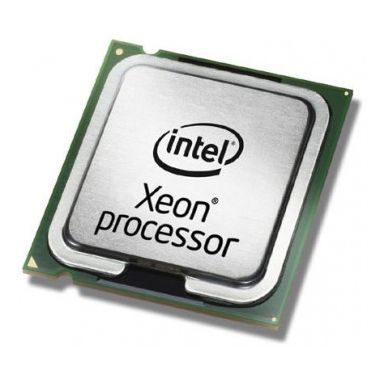

Intel Xeon E5-2620V4 processor 2.1 GHz 20 MB Smart Cache

Processor base frequency

2.1 GHz

Processor manufacturer

Intel

Cooler included

No

Processor codename

Broadwell

Memory bandwidth supported by processor (max)

68.3 GB/s

Thermal Design Power (TDP)

85 W

Processor cache

20 MB

Processor ARK ID

92986

Processor model

E5-2620V4

Processor threads

16

System bus rate

8 GT/s

Processor operating modes

64-bit

VID Voltage Range

0 - 0 V

Processor boost frequency

3 GHz

Stepping

R0

Number of QPI links

2

Bus type

QPI

Component for

Server/workstation

Processor lithography

14 nm

Processor family

Intel® Xeon® E5 v4

Processor cores

8

Box

No

Processor socket

LGA 2011-v3

Processor code

SR2R6

Processor series

Intel Xeon E5-2600 v4

Processor cache type

Smart Cache

Maximum internal memory supported by processor

1.54 TB

Memory types supported by processor

DDR4-SDRAM

Memory clock speeds supported by processor

1600,1866,2133 MHz

Memory bandwidth supported by processor (max)

68.3 GB/s

Supported memory types

DDR4-SDRAM

Memory channels

Quad-channel

ECC

Yes

On-board graphics card

No

Thermal Design Power (TDP)

85 W

VID Voltage Range

0 - 0 V

Intel TSX-NI

Yes

Intel® Secure Key

Yes

Thermal Monitoring Technologies

Yes

Intel® Turbo Boost Technology

2

Intel Trusted Execution Technology

Yes

Intel® Identity Protection Technology (Intel® IPT)

No

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel Flex Memory Access

No

Intel® AES New Instructions (Intel® AES-NI)

Yes

Idle States

Yes

Execute Disable Bit

Yes

Enhanced Intel SpeedStep Technology

Yes

PCI Express slots version

3

Supported instruction sets

AVX 2.0

Scalability

2S

Physical Address Extension (PAE)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Enhanced Halt State

Yes

Intel Demand Based Switching

Yes

Embedded options available

Yes

CPU configuration (max)

2

Processor code

SR2R6

Product type

Processor

Processor cache

20480 KB

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Thermal Design Power (TDP)

85 W

Supported memory types

DDR4-SDRAM

Status

Launched

Processor series

Intel Xeon E5-2600 v4

Physical Address Extension (PAE)

46 bit

Market segment

Server

Launch date

Q1'16

Intel Virtualization Technology (VT-x)

Yes

Intel Secure Key Technology version

1

Intel Identity Protection Technology version

0

Processor cache type

Smart Cache

Bus type units

GT/s

Bus bandwidth

8

Intel TSX-NI version

1

Processor brand name

Intel Xeon

Last change

63903513

Product family

Intel Xeon Processor E5 v4 Family

Bus speed

8 GT/s

Servicing status

End of Servicing Updates

End of servicing updates date

Thursday, June 30, 2022

Maximum number of PCI Express lanes

40

Thermal Design Power (TDP)

85 W

Processor package size

45mm x 52.5mm

Processor ARK ID

92986

Thermal Monitoring Technologies

Yes

Idle States

Yes

Execute Disable Bit

Yes

PCI Express slots version

3

Supported instruction sets

AVX 2.0

Scalability

2S

Physical Address Extension (PAE)

Yes

Embedded options available

Yes

CPU configuration (max)

2

Processor code

SR2R6

Physical Address Extension (PAE)

46 bit

Market segment

Server

Harmonized System (HS) code

85423119

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G077159

PCI Express CEM revision

3

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Conflict-Free processor

Yes

Intel® OS Guard

Yes

Intel TSX-NI

Yes

Intel® Secure Key

Yes

Intel® Turbo Boost Technology

2

Intel Trusted Execution Technology

Yes

Intel® Identity Protection Technology (Intel® IPT)

No

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel Flex Memory Access

No

Intel® AES New Instructions (Intel® AES-NI)

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Enhanced Halt State

Yes

Intel Demand Based Switching

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel Secure Key Technology version

1

Intel Identity Protection Technology version

0

Intel TSX-NI version

1

Intel® vPro™ Platform Eligibility

Yes

Intel® Turbo Boost Technology 2.0 frequency

3 GHz

Intel® Transactional Synchronization Extensions

Yes

Tcase

74 °C

Package type

Retail box

Harmonized System (HS) code

85423119

Processor package size

45mm x 52.5mm

Maximum internal memory

1572864 MB

Maximum internal memory

1.5 TB

CPU configuration (max)

2

Compatibility

Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R1304WT2GSR Intel Server System R1304WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2308WTTYSR Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server System VRN2224THY2 Intel Server System VRN2224THY4 Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Server Board S2600WTTS1R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR

Processor code

SR2R6
