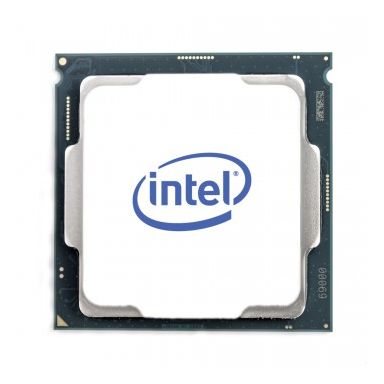

Intel Xeon E-2244G processor 3.8 GHz 8 MB

Processor base frequency

3.8 GHz

Processor manufacturer

Intel

Cooler included

No

Processor codename

Coffee Lake

Thermal Design Power (TDP)

71 W

Processor cache

8 MB

Processor ARK ID

191041

Processor model

E-2244G

Processor threads

8

System bus rate

8 GT/s

Processor operating modes

64-bit

Processor boost frequency

4.8 GHz

Component for

Server/workstation

Processor lithography

14 nm

Processor family

Intel Xeon E

Processor cores

4

Box

No

Processor socket

LGA 1151 (Socket H4)

Processor cache type

Smart Cache

Maximum internal memory supported by processor

128 GB

Memory types supported by processor

DDR4-SDRAM

Memory clock speeds supported by processor

2666 MHz

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

ECC

Yes

Discrete graphics card

No

On-board graphics card maximum resolution (DisplayPort)

4096 x 2304 pixels

On-board graphics card ID

0x3E96

On-board graphics card 4K support

Yes

On-board graphics card maximum resolution (eDP - Integrated Flat Panel)

4096 x 2304 pixels

On-board graphics card refresh rate at maximum resolution (HDMI)

24 Hz

On-board graphics card refresh rate at maximum resolution (DisplayPort)

60 Hz

On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)

60 Hz

Maximum on-board graphics card memory

128 GB

Number of displays supported (on-board graphics)

3

On-board graphics card maximum resolution (HDMI)

4096 x 2160 pixels

On-board graphics card DirectX version

12.0

On-board graphics card OpenGL version

4.5

On-board graphics card model

Intel UHD Graphics P630

On-board graphics card

Yes

On-board graphics card dynamic frequency (max)

1200 MHz

On-board graphics card base frequency

350 MHz

Discrete graphics card model

Not available

Maximum graphics card memory

128 GB

Thermal Design Power (TDP)

71 W

Intel TSX-NI

Yes

Intel® Secure Key

Yes

Thermal Monitoring Technologies

Yes

Intel® Turbo Boost Technology

2.0

Intel Trusted Execution Technology

Yes

Intel® Quick Sync Video Technology

Yes

Intel® InTru™ 3D Technology

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Idle States

Yes

Execute Disable Bit

Yes

Enhanced Intel SpeedStep Technology

Yes

PCI Express slots version

3.0

PCI Express configurations

1x16- 2x8- 1x8+2x4

Supported instruction sets

SSE4.1- SSE4.2- AVX 2.0

Scalability

1S

Intel VT-x with Extended Page Tables (EPT)

Yes

Embedded options available

No

CPU configuration (max)

1

Product type

Processor

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Thermal Design Power (TDP)

71 W

Supported memory types

DDR4-SDRAM

Status

Launched

Maximum resolution & refresh rate (DisplayPort)

4096x2304@60Hz

Market segment

Server

Launch date

Q2'19

Intel Virtualization Technology (VT-x)

Yes

Processor cache type

Smart Cache

Maximum memory

128 GB

Maximum graphics card memory

128 GB

Processor ID

0x3E96

Bus speed

8 GT/s

Servicing status

Baseline Servicing

On-board graphics card ID

0x3E96

Maximum number of PCI Express lanes

16

Thermal Design Power (TDP)

71 W

Processor package size

37.5mm x 37.5mm

Processor ARK ID

191041

Thermal Monitoring Technologies

Yes

Idle States

Yes

Execute Disable Bit

Yes

PCI Express slots version

3.0

PCI Express configurations

1x16- 2x8- 1x8+2x4

Supported instruction sets

SSE4.1- SSE4.2- AVX 2.0

Scalability

1S

Embedded options available

No

CPU configuration (max)

1

Market segment

Server

Harmonized System (HS) code

85423119

Export Control Classification Number (ECCN)

5A992C

Commodity Classification Automated Tracking System (CCATS)

G077159

PCI Express CEM revision

3.0

Intel Clear Video Technology

Yes

Intel Software Guard Extensions (Intel SGX)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel 64

Yes

Intel® Memory Protection Extensions (Intel® MPX)

Yes

Intel® Optane™ Memory Ready

Yes

Intel® OS Guard

Yes

Intel TSX-NI

Yes

Intel® Secure Key

Yes

Intel® Turbo Boost Technology

2.0

Intel Trusted Execution Technology

Yes

Intel® Quick Sync Video Technology

Yes

Intel® InTru™ 3D Technology

Yes

Intel® Hyper Threading Technology (Intel® HT Technology)

Yes

Intel® Clear Video HD Technology (Intel® CVT HD)

Yes

Intel® AES New Instructions (Intel® AES-NI)

Yes

Enhanced Intel SpeedStep Technology

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel® Boot Guard

Yes

Intel® vPro™ Platform Eligibility

Yes

Intel® Turbo Boost Technology 2.0 frequency

4.8 GHz

Intel® Transactional Synchronization Extensions

Yes

Tjunction

100 °C

Tcase

69.3 °C

Harmonized System (HS) code

85423119

Processor package size

37.5mm x 37.5mm

Maximum internal memory

128 GB

CPU configuration (max)

1
