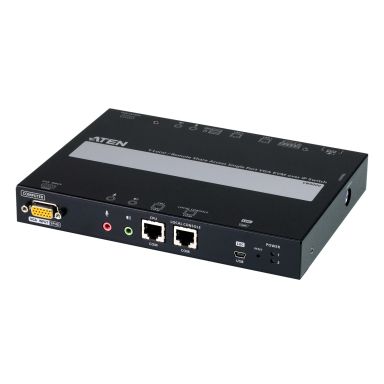

ATEN 1-Local/Remote Share Access Single Port VGA KVM over IP Switch
In Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
USB connector type
USB Type-A
Serial ports quantity
1
Serial port type
RS-232
Number of computers controlled
1
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
Audio connections
Yes
VGA (D-Sub) ports quantity
2
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Performance
HD type
Full HD
Maximum resolution
1920 x 1200 pixels
Technical details
Product colour
Black
Rack mounting
No
LED indicators
Yes
Design
Product colour
Black
Rack mounting
No
LED indicators
Yes
Housing material
Metal
Power
Power source
AC
Power consumption (typical)
7.46 W
Input voltage
5 V
Video
HD type
Full HD
Maximum resolution
1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
200 mm
Depth
154.1 mm
Height
28.5 mm
Weight
1.26 kg
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
1.68 kg
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
1.68 kg
Logistics data
Master (outer) case width
342 mm
Master (outer) case length
512 mm
Master (outer) case height
232 mm
Master (outer) case gross weight
9.03 kg
Products per master (outer) case
5 pc(s)
Master (outer) case net weight
6.3 kg
Harmonized System (HS) code
85176200
ATEN 1-Local/Remote Share Access Single Port VGA KVM over IP Switch
| Length | 32.5 cm |
| Width | 9.8 cm |
| Height | 21 cm |
| Weight | 1.68 kgs |
