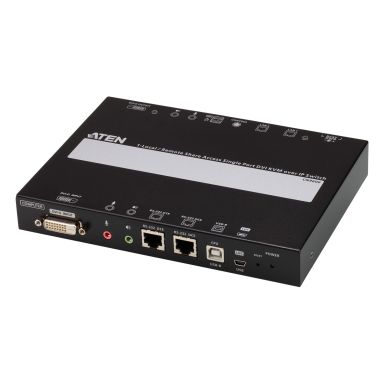

ATEN 1 port DVI KVM over IP, support PS2/USB/Serial consoles, Virtual Media via USB 2.0
In Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, DVI-D, USB A
USB connector type
Mini-USB B, USB Type-A
Number of microphone inputs
1
Serial ports quantity
2
Serial port type
RJ-45
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-D
Audio connections
Yes
PS/2 ports quantity
1
Headphone outputs
1
DVI-D ports quantity
2
DC-in jack
Yes
USB 2.0 Type-B ports quantity
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Performance
Firmware upgradeable
Yes
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Technical details
Product colour
Black
LED indicators
Yes
Compliance certificates
RoHS
Design
Product colour
Black
LED indicators
Yes
Housing material
Metal
Display
Built-in display
No
Power
Power source
DC
Power consumption (typical)
5.55 W
Input voltage
5 V
Video
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
154.9 mm
Depth
200 mm
Height
28.5 mm
Weight
1.24 kg
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
1.61 kg
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
1.61 kg
Logistics data
Master (outer) case width
342 mm
Master (outer) case length
512 mm
Master (outer) case height
232 mm
Master (outer) case gross weight
8.72 kg
Products per master (outer) case
5 pc(s)
Master (outer) case net weight
6.2 kg
Harmonized System (HS) code
85176200
ATEN 1 port DVI KVM over IP, support PS2/USB/Serial consoles, Virtual Media via USB 2.0
| Length | 32.5 cm |
| Width | 9.8 cm |
| Height | 21 cm |
| Weight | 1.61 kgs |
