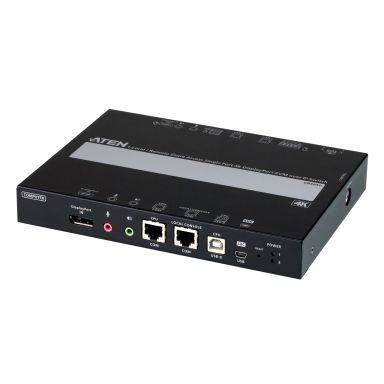

ATEN CN9950 KVM switch
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Product colour
Black
Rack mounting
No
LED indicators
Yes
Video
HD type
4K DCI
Video bandwidth
30 Hz
Maximum resolution
4096 x 2160 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone- 3.5mm mic- DisplayPort- USB A
USB connector type
Mini-USB
Number of microphone inputs
2
DisplayPorts quantity
2
Serial ports quantity
2
Serial port type
RJ-45
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
PS/2 ports quantity
1
Headphone outputs
2
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
USB 2.0 Type-B ports quantity
1
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Performance
HD type
4K DCI
Video bandwidth
30 Hz
Maximum resolution
4096 x 2160 pixels
Design
Product colour
Black
Rack mounting
No
LED indicators
Yes
Housing material
Metal
Display
Built-in display
No
Power
Power source
DC
DC input voltage
5 V
Power consumption (typical)
9.76 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
149.3 mm
Depth
200 mm
Height
28.5 mm
Weight
1.25 kg
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Packaging content
Cables included
DisplayPort- USB
Manual
Yes
AC adapter included
Yes
