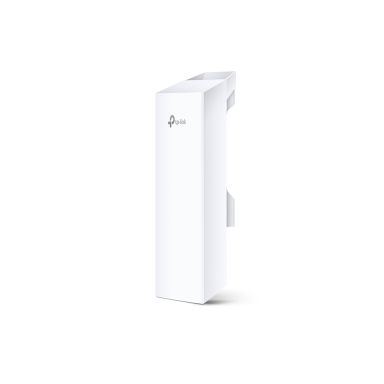

TP-LINK 2.4GHz 300Mbps 9dBi Outdoor CPE
In Stock
|
£30.25
£36.30 (Inc. VAT)
Data transmission
Maximum data transfer rate
300 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
No
Reset button
Yes
Bandwidth
2.4 GHz
Frequency band
2.4 - 2.483 GHz
Web-based management
Yes
Receiver sensitivity
802.11b: 11M: -95dBm- 5.5M: -96dBm- 2M: -96dBm- 1M: -96dBm -802.11g: 54M: -79dBm- 48M: -80dBm- 36M: -84dBm- 6-24M: -88dBm 802.11n: MCS15: -76dBm- MCS14: -78dBm- MCS13: -80dBm- MCS12: -84dBm- MCS11: -87dBm- MCS10: -91dBm- MCS9: -93dBm- MCS8: -96dBm- MCS7: -76dBm- MCS6: -78dBm- MCS5: -80dBm- MCS4: -84dBm- MCS3: -87dBm- MCS2: -91dBm- MCS1: -93dBm- MCS0: -96dBm
Networking standards
IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Maximum outdoor range
5000 m
Management platform
Pharos Control
Certification
- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS- IPX5
Maximum data transfer rate
300 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Internal memory
64 MB
Flash memory
8 MB
Compatible operating systems
Microsoft Windows 98SE- NT- 2000- XP- Vista or Windows 8- Windows 7- MAC OS- NetWare- UNIX or Linux.
Built-in processor
Yes
Processor model
Qualcomm Atheros
Processor frequency
560 MHz
Wireless LAN features
Frequency band
2.4 - 2.483 GHz
Maximum outdoor range
5000 m
Network
Networking standards
IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Bandwidth
Bandwidth
2.4 GHz
Certificates
Certification
- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS- IPX5
Memory
Internal memory
64 MB
Flash memory
8 MB
Features
2.4 GHz
Yes
5 GHz
No
Bandwidth
2.4 GHz
Frequency band
2.4 - 2.483 GHz
Receiver sensitivity
802.11b: 11M: -95dBm- 5.5M: -96dBm- 2M: -96dBm- 1M: -96dBm -802.11g: 54M: -79dBm- 48M: -80dBm- 36M: -84dBm- 6-24M: -88dBm 802.11n: MCS15: -76dBm- MCS14: -78dBm- MCS13: -80dBm- MCS12: -84dBm- MCS11: -87dBm- MCS10: -91dBm- MCS9: -93dBm- MCS8: -96dBm- MCS7: -76dBm- MCS6: -78dBm- MCS5: -80dBm- MCS4: -84dBm- MCS3: -87dBm- MCS2: -91dBm- MCS1: -93dBm- MCS0: -96dBm
Networking standards
IEEE 802.11b-IEEE 802.11g-IEEE 802.11n
Maximum outdoor range
5000 m
Maximum data transfer rate
300 Mbit/s
MIMO type
Multi User MIMO
MIMO
Yes
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Internal memory
64 MB
Flash memory
8 MB
Compatible operating systems
Microsoft Windows 98SE- NT- 2000- XP- Vista or Windows 8- Windows 7- MAC OS- NetWare- UNIX or Linux.
Built-in processor
Yes
Processor model
Qualcomm Atheros
Processor frequency
560 MHz
Security
Security algorithms
64-bit WEP-128-bit WEP-152-bit WEP-SSID-TKIP-WPA-WPA-PSK-WPA2-WPA2-PSK
MAC address filtering
Yes
Protocols
Management protocols
TDMA
Management features
Web-based management
Yes
Management platform
Pharos Control
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
Power consumption (max)
10.5 W
Output voltage
24 V
Output current
1 A
Power over Ethernet (PoE)
Yes
Input voltage
100 - 240 V
Input frequency
50/60 Hz
Input current
0.8 A
Design
International Protection (IP) code
IPX5
Placement
Wall
Product colour
White
Reset button
Yes
LED indicators
Yes
Certification
- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS- IPX5
Antenna
Antenna type
Internal
Antennas quantity
1
Antenna gain level (max)
9 dBi
Antenna features
Integrated antenna
Technical details
Reset button
Yes
Receiver sensitivity
802.11b: 11M: -95dBm- 5.5M: -96dBm- 2M: -96dBm- 1M: -96dBm -802.11g: 54M: -79dBm- 48M: -80dBm- 36M: -84dBm- 6-24M: -88dBm 802.11n: MCS15: -76dBm- MCS14: -78dBm- MCS13: -80dBm- MCS12: -84dBm- MCS11: -87dBm- MCS10: -91dBm- MCS9: -93dBm- MCS8: -96dBm- MCS7: -76dBm- MCS6: -78dBm- MCS5: -80dBm- MCS4: -84dBm- MCS3: -87dBm- MCS2: -91dBm- MCS1: -93dBm- MCS0: -96dBm
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Processor
Built-in processor
Yes
Indication
LED indicators
Yes
Weight & dimensions
Width
224 mm
Depth
79 mm
Height
60 mm
Packaging data
Mounting kit
Yes
Cables included
AC
System requirements
Compatible operating systems
Microsoft Windows 98SE- NT- 2000- XP- Vista or Windows 8- Windows 7- MAC OS- NetWare- UNIX or Linux.
Packaging content
Mounting kit
Yes
Cables included
AC
