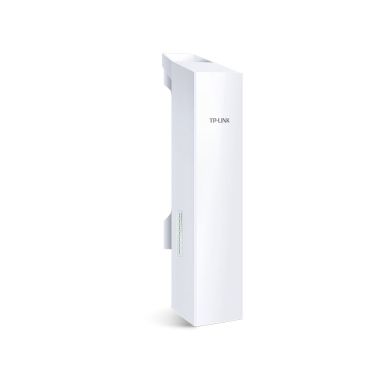

TP-Link CPE220 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
In Stock
|
Call For Price (0808 189 1246)
Data transmission
Wi-Fi data rate (max)
300 Mbit/s
Maximum data transfer rate
300 Mbit/s
Performance
2.4 GHz
Yes
5 GHz
No
Automatic channel selection
Yes
Auto Wireless Distribution System (WDS)
Yes
RTS/CTS threshold
Yes
IGMP snooping
Yes
Wi-Fi data rate (max)
300 Mbit/s
Reset button
Yes
Universal Plug and Play (UPnP)
Yes
Bandwidth
2.4 GHz
Frequency band
2.4 - 2.483 GHz
Web-based management
Yes
VLAN support
Yes
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Management platform
Pharos Control
Channels quantity
5 channels
Channel bandwidth
40 MHz
Certification
- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Maximum data transfer rate
300 Mbit/s
Internal memory
64 MB
Flash memory
8 MB
Built-in processor
Yes
Wireless LAN features
Frequency band
2.4 - 2.483 GHz
Channels quantity
5 channels
Network
Internal
No
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Bandwidth
Bandwidth
2.4 GHz
Channel bandwidth
40 MHz
Management features
Universal Plug and Play (UPnP)
Yes
VLAN support
Yes
Web-based management
Yes
Management platform
Pharos Control
Memory
Internal memory
64 MB
Flash memory
8 MB
Features
2.4 GHz
Yes
5 GHz
No
Automatic channel selection
Yes
RTS/CTS threshold
Yes
Wi-Fi data rate (max)
300 Mbit/s
Bandwidth
2.4 GHz
Frequency band
2.4 - 2.483 GHz
VLAN support
Yes
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Channels quantity
5 channels
Channel bandwidth
40 MHz
Maximum data transfer rate
300 Mbit/s
Internal memory
64 MB
Flash memory
8 MB
Built-in processor
Yes
Security
Number of SSID supported
1
Auto Wireless Distribution System (WDS)
Yes
IGMP snooping
Yes
IP address filtering
Yes
Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, AES, HTTPS, SNMP, SSH, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
SSID broadcast on/off
Protocols
Universal Plug and Play (UPnP)
Yes
Management protocols
TDMA
DHCP client
Yes
Ports & interfaces
Internal RJ-45 ports quantity
1
USB 2.0 ports quantity
0
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Power
Power consumption (max)
10.8 W
Output voltage
24 V
Output current
1 A
Power over Ethernet (PoE)
Yes
Input current
0.8 A
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Design
International Protection (IP) code
IPX5
Product colour
White
Reset button
Yes
Internal
No
LED indicators
Power
Certification
- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Antenna
Antenna type
Internal
Antennas quantity
2
Antenna gain level (max)
12 dBi
Antenna features
Integrated antenna
Technical details
Reset button
Yes
Processor
Built-in processor
Yes
Certificates
Certification
- CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Indication
LED indicators
Power
Weight & dimensions
Width
110 mm
Depth
57 mm
Height
33.5 mm
Packaging data
Quick start guide
Yes
Mounting kit
Yes
AC adapter included
Yes
Packaging content
Quick start guide
Yes
Mounting kit
Yes
AC adapter included
Yes
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
TP-Link CPE220 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
| Weight | 1.00 kgs |
