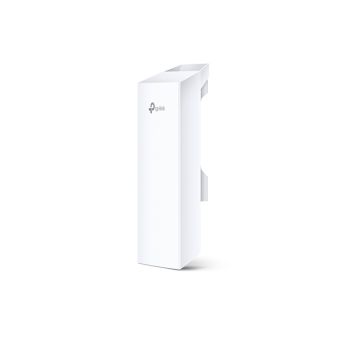

TP-LINK 5GHz 300Mbps 13dBi Outdoor CPE
In Stock
|
£45.20
£54.24 (Inc. VAT)
get it next day (UK Mainland Orders)
TP-LINK 5GHz 300Mbps 13dBi Outdoor CPE
Write Your Own Review
Data transmission
Wi-Fi data rate (max)
300 Mbit/s
Ethernet LAN data rates
10-100 Mbit/s
Maximum data transfer rate
300 Mbit/s
Performance
Wi-Fi data rate (max)
300 Mbit/s
Reset button
Yes
Bandwidth
5 GHz
Frequency band
5.15 - 5.85 GHz
Web-based management
Yes
Receiver sensitivity
802.11a: 54M: -75dBm- 48M: -76dBm- 36M: -83dBm- 6-24M: -95dBm 802.11n: MCS15: -73dBm- MCS14: -74dBm- MCS13: -76dBm- MCS12: -80dBm- MCS11: -83dBm- MCS10: -88dBm- MCS9: -90dBm- MCS8: -93dBm- MCS7: -73dBm- MCS6: -74dBm- MCS5: -76dBm- MCS4: -80dBm- MCS3: -83dBm- MCS2: -88dBm- MCS1: -90dBm- MCS0: -93dBm
Networking standards
IEEE 802.11a-IEEE 802.11n
Maximum outdoor range
15000 m
Management platform
Pharos Control
Ethernet LAN data rates
10-100 Mbit/s
Certification
FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Maximum data transfer rate
300 Mbit/s
Internal memory
64 MB
Flash memory
8 MB
Compatible operating systems
Microsoft Windows 98SE- NT- 2000- XP- Vista⢠or Windows 8- Windows 7- MAC OS- NetWare- UNIX or Linux.
Built-in processor
Yes
Wireless LAN features
Frequency band
5.15 - 5.85 GHz
Maximum outdoor range
15000 m
Network
Internal
No
Networking standards
IEEE 802.11a-IEEE 802.11n
Bandwidth
Bandwidth
5 GHz
Certificates
Certification
FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Memory
Internal memory
64 MB
Flash memory
8 MB
Features
Wi-Fi data rate (max)
300 Mbit/s
Bandwidth
5 GHz
Frequency band
5.15 - 5.85 GHz
Receiver sensitivity
802.11a: 54M: -75dBm- 48M: -76dBm- 36M: -83dBm- 6-24M: -95dBm 802.11n: MCS15: -73dBm- MCS14: -74dBm- MCS13: -76dBm- MCS12: -80dBm- MCS11: -83dBm- MCS10: -88dBm- MCS9: -90dBm- MCS8: -93dBm- MCS7: -73dBm- MCS6: -74dBm- MCS5: -76dBm- MCS4: -80dBm- MCS3: -83dBm- MCS2: -88dBm- MCS1: -90dBm- MCS0: -93dBm
Networking standards
IEEE 802.11a-IEEE 802.11n
Maximum outdoor range
15000 m
Ethernet LAN data rates
10-100 Mbit/s
Maximum data transfer rate
300 Mbit/s
Internal memory
64 MB
Flash memory
8 MB
Compatible operating systems
Microsoft Windows 98SE- NT- 2000- XP- Vista⢠or Windows 8- Windows 7- MAC OS- NetWare- UNIX or Linux.
Built-in processor
Yes
Security
Security algorithms
64-bit WEP-128-bit WEP-152-bit WEP-TKIP-WPA-WPA-PSK-WPA2-WPA2-PSK
MAC address filtering
Yes
Protocols
Management protocols
TDMA
Management features
Web-based management
Yes
Management platform
Pharos Control
Ports & interfaces
WAN connection
Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports
1
Power
Power consumption (typical)
13 W
Power over Ethernet (PoE)
Yes
Input voltage
100 - 240 V
Input frequency
50/60 Hz
Input current
0.8 A
Design
Product colour
White
Reset button
Yes
Internal
No
LED indicators
Yes
Certification
FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Antenna
Antennas quantity
1
Antenna gain level (max)
13 dBi
Antenna features
Integrated antenna
Technical details
Reset button
Yes
Receiver sensitivity
802.11a: 54M: -75dBm- 48M: -76dBm- 36M: -83dBm- 6-24M: -95dBm 802.11n: MCS15: -73dBm- MCS14: -74dBm- MCS13: -76dBm- MCS12: -80dBm- MCS11: -83dBm- MCS10: -88dBm- MCS9: -90dBm- MCS8: -93dBm- MCS7: -73dBm- MCS6: -74dBm- MCS5: -76dBm- MCS4: -80dBm- MCS3: -83dBm- MCS2: -88dBm- MCS1: -90dBm- MCS0: -93dBm
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Processor
Built-in processor
Yes
Indication
LED indicators
Yes
Weight & dimensions
Width
224 mm
Depth
75 mm
Height
60 mm
Packaging data
Cables included
AC
System requirements
Compatible operating systems
Microsoft Windows 98SE- NT- 2000- XP- Vista⢠or Windows 8- Windows 7- MAC OS- NetWare- UNIX or Linux.
Packaging content
Cables included
AC
| Length | 7.9 cm |
| Width | 22.4 cm |
| Height | 6 cm |
| Weight | 0.32 kgs |
