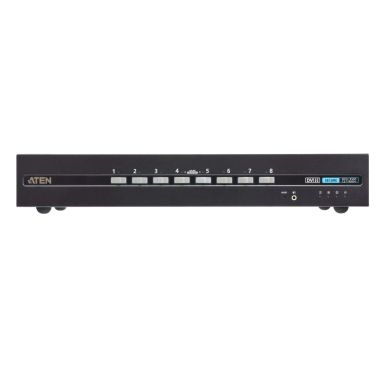

ATEN CS1148D4 KVM switch Rack mounting Black
In Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, DVI-I, USB A
USB connector type
USB Type-A, USB Type-B
Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-I
Audio connections
Yes
PS/2 ports quantity
2
Headphone outputs
9
DVI-I ports quantity
16
USB 2.0 Type-B ports quantity
8
Console DVI-I ports quantity
2
RJ-11 ports quantity
1
Performance
HD type
4K Ultra HD
Video bandwidth
30 Hz
Maximum resolution
3840 x 2160 pixels
Technical details
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Design
Product colour
Black
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Housing material
Metal
Display
Built-in display
No
Power
Input current
1 A
Power source
AC
AC input frequency
50 - 60 Hz
Power consumption (typical)
16 W
Input voltage
100 - 240 V
Video
HD type
4K Ultra HD
Video bandwidth
30 Hz
Maximum resolution
3840 x 2160 pixels
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
432.4 mm
Depth
204.9 mm
Height
65.5 mm
Weight
3.33 kg
Packaging content
Cables included
AC
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
ATEN CS1148D4 KVM switch Rack mounting Black
| Length | 20.49 cm |
| Width | 43.24 cm |
| Height | 6.55 cm |
| Weight | 3.33 kgs |
