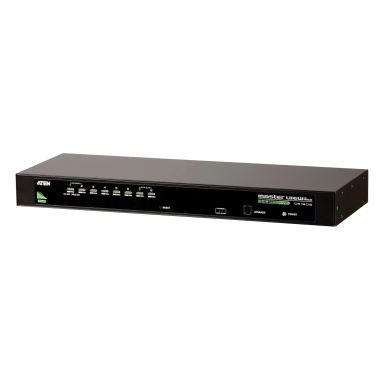

Aten Cs1308-At-E Kvm Switch Rack Mounting
In Stock
|
£167.16
£200.59 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Console ports
VGA (D-Sub)
Number of computers controlled
64
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
VGA (D-Sub) ports quantity
9
DC-in jack
Yes
Performance
Firmware upgradeable
Yes
HD type
QXGA
Maximum resolution
2048 x 1536 pixels
Scan interval
1,255 s
Technical details
Product colour
Black
Rack mounting
Yes
Scan interval
1,255 s
Push button
Yes
Hot keys
Yes
Cascadable
Yes
Compliance certificates
RoHS
Design
Product colour
Black
Rack mounting
Yes
Push button
Yes
Hot keys
Yes
Cascadable
Yes
Rack capacity
1U
Housing material
Metal
Display
Built-in display
No
Power
Power source
DC
Power consumption (typical)
5 W
Input voltage
5.3 V
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Video
HD type
QXGA
Maximum resolution
2048 x 1536 pixels
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
161.3 mm
Depth
437.2 mm
Height
44 mm
Weight
1.89 kg
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
2.69 kg
Packaging data
Package width
116 mm
Package depth
540 mm
Package height
233 mm
Package weight
2.69 kg
Packaging content
Rack mount kit
Yes
Quick installation guide
Yes
AC adapter included
Yes
Other features
Push button
Yes
Hot keys
Yes
Aten Cs1308-At-E Kvm Switch Rack Mounting
| Length | 54 cm |
| Width | 11.6 cm |
| Height | 23.3 cm |
| Weight | 2.69 kgs |
