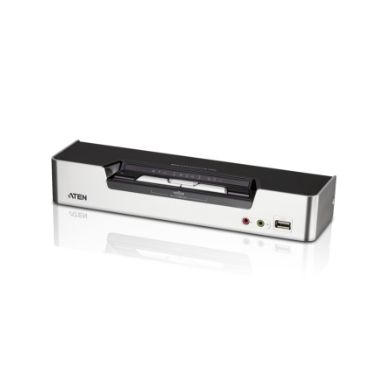

Aten CS1642A KVM switch Black

Console USB ports quantity

2

Console ports

3.5mm headphone, 3.5mm mic, DVI-I, USB A

Number of microphone inputs

1

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DVI-I

Audio connections

Yes

USB 2.0 ports quantity

4

Headphone outputs

2

DVI-I ports quantity

6

DC-in jack

Yes

Video bandwidth

60 Hz

Maximum resolution

2560 x 1600 pixels

Scan interval

1,99 s

Product colour

Black, Silver

Rack mounting

Yes

Scan interval

1,99 s

Push button

Yes

Hot keys

Yes

Compliance certificates

RoHS

Product colour

Black, Silver

Rack mounting

Yes

Push button

Yes

Hot keys

Yes

Rack capacity

1U

Housing material

Metal, Plastic

Built-in display

No

Power source

DC

Power consumption (typical)

10.6 W

Input voltage

5.3 V

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Other operating systems supported

Yes

Video bandwidth

60 Hz

Maximum resolution

2560 x 1600 pixels

Compliance certificates

RoHS

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

262.3 mm

Depth

76.8 mm

Height

44 mm

Weight

560 g

Cables included

DVI, KVM

Quick installation guide

Yes

AC adapter included

Yes

Push button

Yes

Hot keys

Yes
