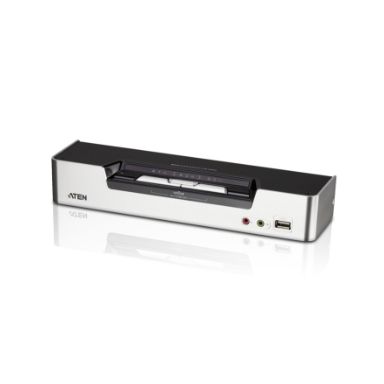

Aten Cs1642a-At-E Kvm Switch Rack Mounting
In Stock
|
£296.18
£355.42 (Inc. VAT)
Technical details
Product colour
Black- Silver
Rack mounting
Yes
Scan interval
1-99 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Sustainability certificates
RoHS
Video
Video bandwidth
60 Hz
Maximum resolution
2560 x 1600 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone- 3.5mm mic- DVI-I- USB A
Number of microphone inputs
1
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-I
Audio connections
Yes
Headphone outputs
2
Ethernet LAN (RJ-45) ports
1
DVI-I ports quantity
6
DC-in jack
Yes
USB 2.0 Type-A hub ports quantity
2
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Performance
Video bandwidth
60 Hz
Maximum resolution
2560 x 1600 pixels
Scan interval
1-99 s
Design
Product colour
Black- Silver
Rack mounting
Yes
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Rack capacity
1U
Housing material
Metal- Plastic
Display
Built-in display
No
Power
Power source
DC
DC input voltage
5.3 V
Power consumption (typical)
10.6 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Other operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
262.3 mm
Depth
76.8 mm
Height
44 mm
Weight
1.72 kg
Package width
88 mm
Package depth
325 mm
Package height
210 mm
Package weight
2 kg
Packaging data
Package width
88 mm
Package depth
325 mm
Package height
210 mm
Package weight
2 kg
Packaging content
Cables included
DVI-KVM
Quick installation guide
Yes
Manual
Yes
AC adapter included
Yes
Other features
Push button
Yes
Hot keys
Yes
Aten Cs1642a-At-E Kvm Switch Rack Mounting
| Length | 7.68 cm |
| Width | 26.23 cm |
| Height | 4.40 cm |
| Weight | 1.720000 kgs |
