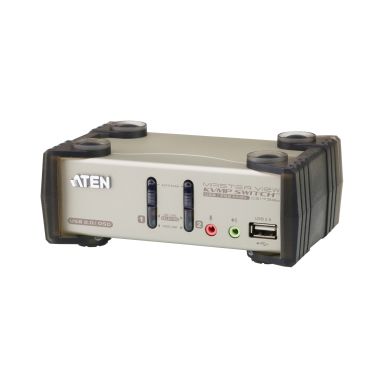

ATEN CS1732B KVM switch
In Stock
|
£109.20
£131.04 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Console ports
3.5mm headphone, 3.5mm mic
USB version
2.0
Number of computers controlled
2
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
Audio connections
Yes
USB 2.0 ports quantity
2
Headphone outputs
4
USB hub
Yes
Cable length
1.2 m
Performance
DDC2B support
Yes
Firmware upgradeable
Yes
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Scan interval
1,255 s
Technical details
Scan interval
1,255 s
Push button
Yes
On Screen Display (OSD)
Yes
LED indicators
Network, USB
Hot keys
Yes
USB version
2.0
USB hub
Yes
Design
Cable length
1.2 m
Push button
Yes
LED indicators
Network, USB
Hot keys
Yes
Housing material
Metal
Display
On Screen Display (OSD)
Yes
Power
Power source
DC
Power consumption (typical)
2.5 W
Input voltage
5.3 V
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Video
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
140 mm
Depth
88 mm
Height
55.5 mm
Weight
550 g
Packaging content
Cables included
KVM
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
ATEN CS1732B KVM switch
| Weight | 0.55 kgs |
