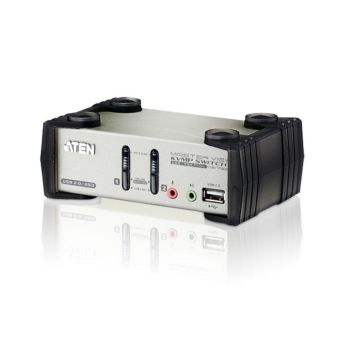

ATEN CS1732B-AT-E KVM switch Black, Metallic
In Stock
|
£112.20
£134.64 (Inc. VAT)
get it next day (UK Mainland Orders)
ATEN CS1732B-AT-E KVM switch Black, Metallic
Write Your Own Review
Ports & interfaces
Console ports
3.5mm headphone, 3.5mm mic
Number of microphone inputs
4
Number of computers controlled
2
Keyboard port type
USB, PS/2
Mouse port type
USB, PS/2
Video port type
VGA
Audio connections
Yes
Headphone outputs
4
DC-in jack
Yes
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
Cable length
1.2 m
Performance
DDC2B support
Yes
Firmware upgradeable
Yes
HD type
QXGA
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Scan interval
1,255 s
Technical details
Product colour
Black, Metallic
Scan interval
1,255 s
Push button
Yes
On Screen Display (OSD)
Yes
LED indicators
Yes
Hot keys
Yes
USB hub
Yes
Design
Product colour
Black, Metallic
Cable length
1.2 m
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal
Display
On Screen Display (OSD)
Yes
Power
Power source
DC
Power consumption (typical)
2.5 W
Input voltage
5.3 V
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Video
HD type
QXGA
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
140 mm
Depth
88 mm
Height
55.5 mm
Weight
1.15 kg
Package width
62 mm
Package depth
283 mm
Package height
173 mm
Package weight
1.34 kg
Packaging data
Package width
62 mm
Package depth
283 mm
Package height
173 mm
Package weight
1.34 kg
Packaging content
Cables included
KVM
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
| Length | 28.3 cm |
| Width | 6.2 cm |
| Height | 17.3 cm |
| Weight | 1.34 kgs |
