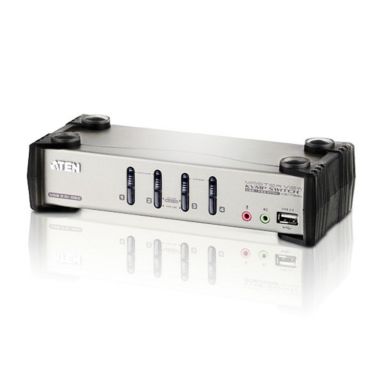

Aten Cs1734b Kvm Audio-Usb Switch 4 Ports
In Stock
|
£132.64
£159.17 (Inc. VAT)
Technical details
Product colour
Black- Metallic
Scan interval
1-255 s
Push button
Yes
On Screen Display (OSD)
Yes
Hot keys
Yes
USB hub
Yes
Video
HD type
QXGA
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone- 3.5mm mic- USB A- VGA (D-Sub)
Number of microphone inputs
6
Number of computers controlled
4
Keyboard port type
USB- PS/2
Mouse port type
USB- PS/2
Video port type
VGA
Audio connections
Yes
VGA (D-Sub) ports quantity
1
Headphone outputs
6
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
Performance
DDC2B support
Yes
Firmware upgradeable
Yes
HD type
QXGA
Video bandwidth
60 Hz
Maximum resolution
2048 x 1536 pixels
Scan interval
1-255 s
Design
Product colour
Black- Metallic
Push button
Yes
Hot keys
Yes
Housing material
Metal
Display
Built-in display
No
On Screen Display (OSD)
Yes
Power
Power source
DC
DC input voltage
5 V
Power consumption (typical)
1.02 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
88 mm
Depth
210 mm
Height
55.5 mm
Weight
1.95 kg
Package width
100 mm
Package depth
283 mm
Package height
173 mm
Package weight
2.09 kg
Packaging data
Package width
100 mm
Package depth
283 mm
Package height
173 mm
Package weight
2.09 kg
Packaging content
Cables included
KVM-USB
Other features
Push button
Yes
Hot keys
Yes
