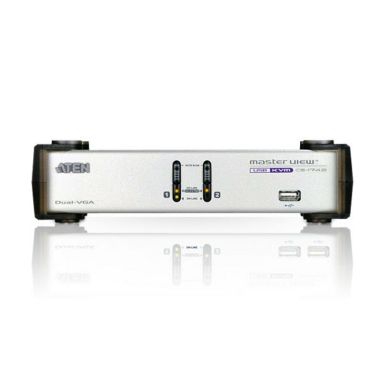

Aten Cs1742 Kvm Switch
In Stock
|
$147.19
$176.63 (Inc. VAT)
Technical details
Product colour
Silver
Rack mounting
No
Scan interval
1-99 s
Push button
Yes
On Screen Display (OSD)
No
LED indicators
Yes
Hot keys
Yes
USB version
2.0
USB hub
Yes
Sustainability certificates
RoHS
Video
Maximum resolution
2048 x 1536 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone- 3.5mm mic- USB A- VGA (D-Sub)
USB version
2.0
USB connector type
USB Type-A
Number of microphone inputs
1
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
Audio connections
Yes
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
6
Headphone outputs
1
DC-in jack
Yes
USB hub
Yes
Performance
DDC2B support
Yes
Firmware upgradeable
Yes
Maximum resolution
2048 x 1536 pixels
Scan interval
1-99 s
Design
Product colour
Silver
Rack mounting
No
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Power source
DC
DC input voltage
5 V
Power consumption (typical)
1.25 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Other operating systems supported
Yes
Sustainability
Sustainability certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
210 mm
Depth
88 mm
Height
55.5 mm
Weight
820 g
Packaging content
Cables included
KVM
Manual
Yes
Logistics data
Harmonized System (HS) code
85176200
Other features
Push button
Yes
Hot keys
Yes
