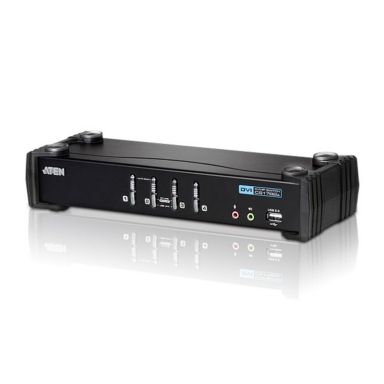

Aten CS1764A KVM switch Black
In Stock
|
£193.10
£231.72 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB version
2.0
USB connector type
USB Type-A
Number of microphone inputs
5
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-I
Audio connections
Yes
USB 2.0 ports quantity
4
Headphone outputs
5
DVI-I ports quantity
5
DC-in jack
Yes
USB hub
Yes
HDCP
Yes
Performance
DDC2B support
Yes
HDCP
Yes
Power on detection
Yes
Firmware upgradeable
Yes
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1,99 s
Technical details
Product colour
Black
Scan interval
1,99 s
Push button
Yes
On Screen Display (OSD)
No
LED indicators
USB, Yes
Hot keys
Yes
USB version
2.0
USB hub
Yes
Compliance certificates
RoHS
Design
Product colour
Black
Push button
Yes
LED indicators
USB, Yes
Hot keys
Yes
Housing material
Metal
Display
Built-in display
No
On Screen Display (OSD)
No
Power
Power source
DC
Power consumption (typical)
10.7 W
Input voltage
5.3 V
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Other operating systems supported
Yes
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
270 mm
Depth
88 mm
Height
55.5 mm
Weight
940 g
Packaging content
Cables included
DC, KVM
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
Logistics data
Harmonized System (HS) code
85176200
Aten CS1764A KVM switch Black
| Weight | 0.94 kgs |
