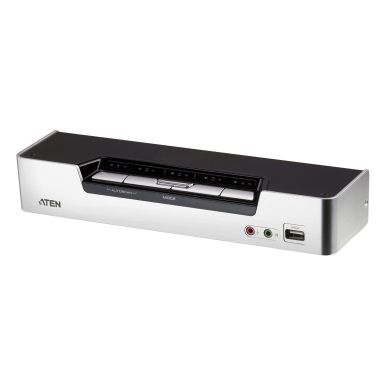

Aten CS1794 KVM switch Silver

Console USB ports quantity

2

Console ports

3.5mm headphone, 3.5mm mic, HDMI, USB A

USB connector type

USB Type-A, USB Type-B

Number of microphone inputs

6

Number of computers controlled

4

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

Audio connections

Yes

USB 2.0 ports quantity

4

Headphone outputs

6

HDMI ports quantity

5

DC-in jack

Yes

HDCP

Yes

HDCP

Yes

Power on detection

Yes

Firmware upgradeable

Yes

HD type

WUXGA

Maximum resolution

1920 x 1200 pixels

Scan interval

1,99 s

Product colour

Black, Stainless steel

Rack mounting

Yes

Scan interval

1,99 s

Push button

Yes

On Screen Display (OSD)

No

LED indicators

Yes

Hot keys

Yes

Compliance certificates

RoHS

Product colour

Black, Stainless steel

Rack mounting

Yes

Push button

Yes

LED indicators

Yes

Hot keys

Yes

Rack capacity

1U

Housing material

Metal, Plastic

Built-in display

No

On Screen Display (OSD)

No

Power source

DC

Power consumption (typical)

4.8 W

Input voltage

5.3 V

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

HD type

WUXGA

Maximum resolution

1920 x 1200 pixels

Compliance certificates

RoHS

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

262.3 mm

Depth

76.8 mm

Height

44 mm

Weight

530 g

Push button

Yes

Hot keys

Yes

Harmonized System (HS) code

85176200
