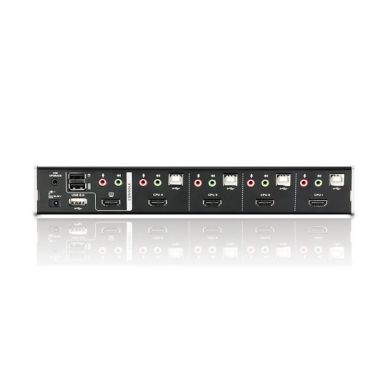

Aten Cubiq Cs1794 Usb 2.0 Hdmi-Kvm-Audio-Usb Switch - 4 Ports
In Stock
|
$309.75
$371.70 (Inc. VAT)
Technical details
Product colour
Black
Scan interval
1-5-99 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
USB hub
Yes
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone- HDMI- USB A
USB connector type
USB Type-A- USB Type-B
Number of microphone inputs
6
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
Audio connections
Yes
Headphone outputs
6
HDMI ports quantity
4
DC-in jack
Yes
USB hub
Yes
USB 2.0 Type-B ports quantity
4
USB 2.0 Type-A hub ports quantity
2
Performance
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
1-5-99 s
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal- Plastic
Display
Built-in display
No
Power
Power source
DC
DC input voltage
5.3 V
Power consumption (typical)
3.62 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
262.3 mm
Depth
76.8 mm
Height
44 mm
Weight
1.76 kg
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
2 kg
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
2 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
Aten Cubiq Cs1794 Usb 2.0 Hdmi-Kvm-Audio-Usb Switch - 4 Ports
