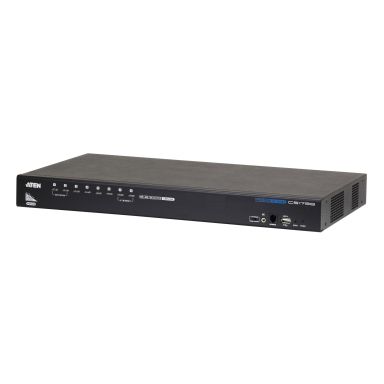

Aten Cs1798 Kvm Switch Rack Mounting

Console USB ports quantity

2

Console ports

3.5mm headphone, HDMI, USB B

USB version

2.0

USB connector type

USB Type-B

Number of computers controlled

512

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

Audio connections

Yes

Headphone outputs

8

HDMI ports quantity

9

DC-in jack

Yes

USB hub

Yes

HDCP

Yes

HDCP

Yes

Firmware upgradeable

Yes

HD type

WUXGA

Video bandwidth

60 Hz

Hot-Plug support

Yes

Maximum resolution

1920 x 1200 pixels

Product colour

Black

Rack mounting

Yes

Hot-Plug support

Yes

Push button

Yes

On Screen Display (OSD)

Yes

LED indicators

Yes

Hot keys

Yes

USB version

2.0

USB hub

Yes

Cascadable

Yes

Keyboard language

Chinese Traditional, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English

Product colour

Black

Rack mounting

Yes

Push button

Yes

LED indicators

Yes

Hot keys

Yes

Cascadable

Yes

Rack capacity

1U

Housing material

Metal

Built-in display

No

On Screen Display (OSD)

Yes

Power source

DC

Power consumption (typical)

12 W

Input voltage

5 V

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Other operating systems supported

Yes

HD type

WUXGA

Video bandwidth

60 Hz

Maximum resolution

1920 x 1200 pixels

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

432.4 mm

Depth

257.2 mm

Height

44 mm

Weight

3.49 kg

Rack mount kit

Yes

Cables included

KVM

Quick installation guide

Yes

AC adapter included

Yes

Push button

Yes

Hot keys

Yes

Harmonized System (HS) code

85176200
