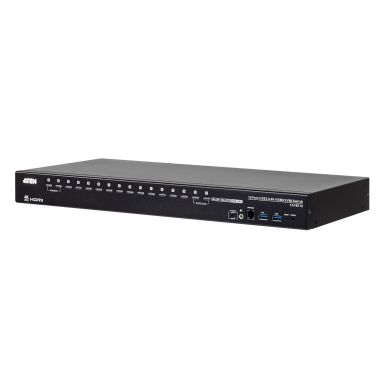

ATEN CS18216-AT-E KVM switch Black
In Stock
|
£1550.28
£1860.34 (Inc. VAT)
get it next day (UK Mainland Orders)
ATEN CS18216-AT-E KVM switch Black
Write Your Own Review
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, HDMI, USB A
USB connector type
USB Type-A, USB Type-B
Number of microphone inputs
1
Number of computers controlled
16
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
Audio connections
Yes
Headphone outputs
17
HDMI ports quantity
16
DC-in jack
Yes
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
16
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Performance
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Scan interval
1,5,255 s
Technical details
Product colour
Black
Scan interval
1,5,255 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
USB hub
Yes
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal
Display
Built-in display
No
Power
Power source
DC
Power consumption (typical)
13.12 W
Input voltage
12 V
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Video
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
432.4 mm
Depth
214.3 mm
Height
44 mm
Weight
4.37 kg
Package width
133 mm
Package depth
499 mm
Package height
324 mm
Package weight
5.25 kg
Packaging data
Package width
133 mm
Package depth
499 mm
Package height
324 mm
Package weight
5.25 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
| Length | 49.9 cm |
| Width | 13.3 cm |
| Height | 32.4 cm |
| Weight | 5.25 kgs |
