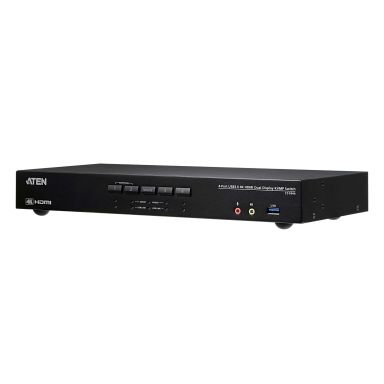

ATEN CS1844 KVM switch Black

Console USB ports quantity

2

Console ports

3.5mm headphone, 3.5mm mic, HDMI, USB A

Number of microphone inputs

2

HDMI version

2.0

Number of computers controlled

4

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

Headphone outputs

2

HDMI ports quantity

10

USB hub

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

2

HDCP

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN (RJ-45) ports

1

Daisy chain

Yes

HDCP

Yes

Firmware upgradeable

Yes

Auto scan delay (min)

1 s

Auto scan delay (max)

99 s

HD type

4K DCI

Video bandwidth

60 Hz

Maximum resolution

4096 x 2160 pixels

Scan interval

5 s

Number of displays supported

4

Product colour

Black

Scan interval

5 s

Push button

Yes

Hot keys

Yes

USB hub

Yes

Compliance certificates

RoHS

Product colour

Black

Push button

Yes

Hot keys

Yes

Housing material

Metal

Built-in display

No

Power source

DC

Power consumption (typical)

4.42 W

Input voltage

12 V

HD type

4K DCI

Video bandwidth

60 Hz

Maximum resolution

4096 x 2160 pixels

Compliance certificates

RoHS

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

160.5 mm

Depth

335 mm

Height

44 mm

Weight

1.57 kg

Cables included

Audio (3.5mm), HDMI, USB

Manual

Yes

AC adapter included

Yes

Push button

Yes

Hot keys

Yes
