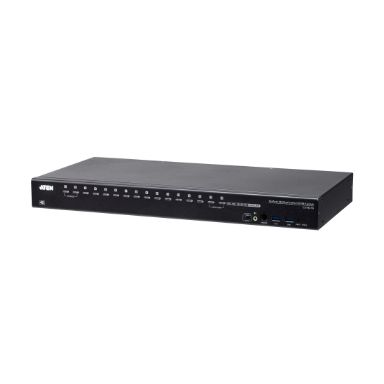

Aten Cs19216-At-E Kvm Switch
In Stock
|
$1941.04
$2329.25 (Inc. VAT)
Technical details
Product colour
Black
Scan interval
1-5-255 s
Push button
Yes
LED indicators
Yes
USB hub
Yes
Performance
HDCP
Yes
Firmware upgradeable
Yes
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Scan interval
1-5-255 s
Video
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone- 3.5mm mic- DisplayPort- HDMI- USB A
HDCP
Yes
USB connector type
USB Type-A- USB Type-B
Number of microphone inputs
17
DisplayPorts quantity
16
DisplayPort version
1.2
Number of computers controlled
16
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
17
DC-in jack
Yes
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
16
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Housing material
Metal
Display
Built-in display
No
Power
Power source
DC
DC input voltage
12 V
Power consumption (typical)
26.66 W
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
432.4 mm
Depth
214.3 mm
Height
44 mm
Weight
4.18 kg
Package width
133 mm
Package depth
499 mm
Package height
324 mm
Package weight
5.33 kg
Packaging data
Package width
133 mm
Package depth
499 mm
Package height
324 mm
Package weight
5.33 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Aten Cs19216-At-E Kvm Switch
| Length | 21.43 cm |
| Width | 43.24 cm |
| Height | 4.40 cm |
| Weight | 4.180000 kgs |
