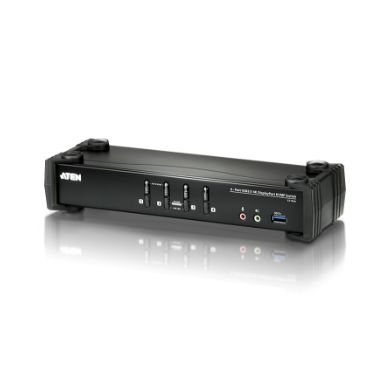

Aten Cs1924-At-E Kvm Switch
In Stock
|
£286.25
£343.50 (Inc. VAT)
Technical details
Product colour
Black
Scan interval
1-5-99 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
USB hub
Yes
Video
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone- DisplayPort- HDMI- USB A
USB connector type
USB Type-A- USB Type-B
Number of microphone inputs
6
DisplayPorts quantity
4
Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
Headphone outputs
6
DC-in jack
Yes
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Performance
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Scan interval
1-5-99 s
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal- Plastic
Display
Built-in display
No
Power
Power source
AC
DC input voltage
5 V
Power consumption (typical)
2.99 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
270 mm
Depth
88 mm
Height
55.5 mm
Weight
2.09 kg
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
2.54 kg
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
2.54 kg
Packaging content
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
Aten Cs1924-At-E Kvm Switch
