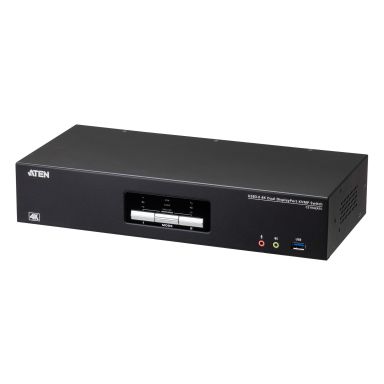

ATEN CS1942ATC KVM switch Black
In Stock
|
£1022.49
£1226.99 (Inc. VAT)
get it next day (UK Mainland Orders)
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub)
USB connector type
Micro-USB, USB Type-A
Number of microphone inputs
2
DisplayPorts quantity
4
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
Audio connections
Yes
VGA (D-Sub) ports quantity
3
Headphone outputs
2
DC-in jack
Yes
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Console DisplayPorts ports quantity
2
RJ-11 ports quantity
1
Performance
Firmware upgradeable
Yes
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Technical details
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
No
USB hub
Yes
Design
Product colour
Black
Push button
Yes
LED indicators
Yes
Hot keys
No
Housing material
Metal
Country of origin
Taiwan
Display
Built-in display
Yes
Power
Power source
DC
Power consumption (typical)
17.8 W
Input voltage
12 V
Video
HD type
4K Ultra HD
Video bandwidth
60 Hz
Maximum resolution
4096 x 2160 pixels
Features
Country of origin
Taiwan
Operational conditions
Operating temperature (T-T)
0 - 20 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
161 mm
Depth
335 mm
Height
65.5 mm
Weight
1.88 kg
Package width
133 mm
Package depth
499 mm
Package height
324 mm
Package weight
4.21 kg
Packaging data
Package width
133 mm
Package depth
499 mm
Package height
324 mm
Package weight
4.21 kg
Packaging content
Quick installation guide
Yes
Other features
Push button
Yes
Hot keys
No
Logistics data
Country of origin
Taiwan
Harmonized System (HS) code
84718000
ATEN CS1942ATC KVM switch Black
| Length | 49.9 cm |
| Width | 13.3 cm |
| Height | 32.4 cm |
| Weight | 4.21 kgs |
