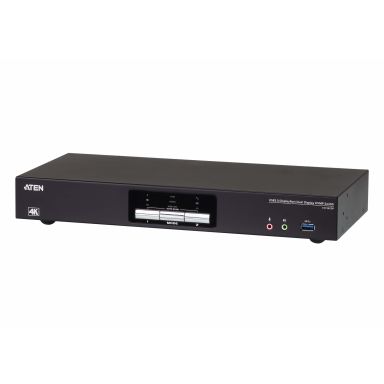

Aten Cs1942dp-At-E Kvm Switch

Console USB ports quantity

2

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

Number of microphone inputs

4

DisplayPorts quantity

6

DisplayPort version

1.2

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Headphone outputs

4

DC-in jack

Yes

USB hub

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

2

HDCP

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Daisy chain

Yes

HDCP

Yes

Firmware upgradeable

Yes

Auto scan delay (min)

1 s

Auto scan delay (max)

99 s

HD type

4K Ultra HD

Video bandwidth

60 Hz

Maximum resolution

4096 x 2160 pixels

Scan interval

1,99 s

Product colour

Black

Rack mounting

No

Scan interval

1,99 s

Push button

Yes

LED indicators

Yes

Hot keys

Yes

USB hub

Yes

Product colour

Black

Rack mounting

No

Push button

Yes

LED indicators

Yes

Hot keys

Yes

Housing material

Metal

Built-in display

No

Power source

DC

Power consumption (typical)

3.48 W

Input voltage

12 V

HD type

4K Ultra HD

Video bandwidth

60 Hz

Maximum resolution

4096 x 2160 pixels

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

156.6 mm

Depth

335 mm

Height

44 mm

Weight

2.74 kg

Package width

116 mm

Package depth

540 mm

Package height

233 mm

Package weight

3.36 kg

Package width

116 mm

Package depth

540 mm

Package height

233 mm

Package weight

3.36 kg

Cables included

Audio (3.5mm), DisplayPort to Mini DisplayPort, USB

Manual

Yes

AC adapter included

Yes

Push button

Yes

Hot keys

Yes
