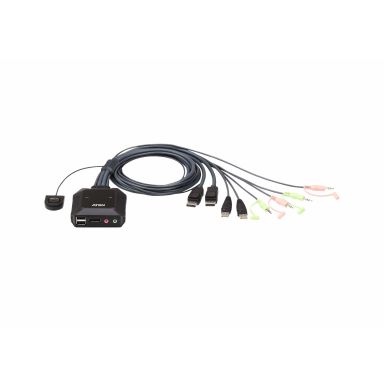

Aten CS22DP KVM switch Black

Console USB ports quantity

2

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

USB connector type

Micro-USB B, USB Type-A

Number of microphone inputs

1

DisplayPorts quantity

2

DisplayPort version

1.1

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Audio connections

Yes

Headphone outputs

1

USB 2.0 Type-A hub ports quantity

2

Console DisplayPorts ports quantity

1

Cable length

1.2 m

HDCP

Yes

Ethernet LAN

No

HDCP

Yes

HD type

4K Ultra HD

Video bandwidth

30 Hz

Hot-Plug support

Yes

Maximum resolution

4096 x 2160 pixels

Product colour

Black

Rack mounting

No

Hot-Plug support

Yes

LED indicators

Yes

Compliance certificates

RoHS

Wired remote switch

Yes

Remote switch cable length

1.8 m

Product colour

Black

Cable length

1.2 m

Rack mounting

No

LED indicators

Yes

Housing material

Plastic

Built-in display

No

Power source

DC

Power consumption (typical)

1.38 W

Input voltage

5 V

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

HD type

4K Ultra HD

Video bandwidth

30 Hz

Maximum resolution

4096 x 2160 pixels

Compliance certificates

RoHS

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

84.2 mm

Depth

83.4 mm

Height

30.4 mm

Weight

350 g

Manual

Yes
