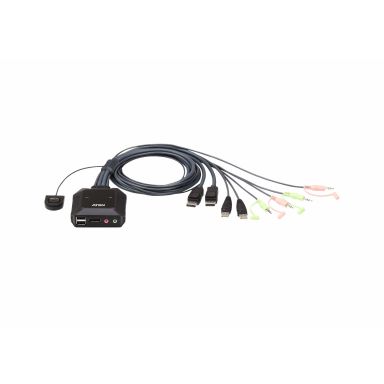

ATEN 2-Port USB DisPlayPort Cable KVM Switch

Console USB ports quantity

2

Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A

USB connector type

Micro-USB B, USB Type-A

Number of microphone inputs

1

DisplayPorts quantity

1

DisplayPort version

1.1

Number of computers controlled

2

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

Audio connections

Yes

USB 2.0 ports quantity

2

Headphone outputs

1

Cable length

1.2 m

HDCP

Yes

Ethernet LAN

No

HDCP

Yes

HD type

4K Ultra HD

Video bandwidth

30 Hz

Hot-Plug support

Yes

Maximum resolution

4096 x 2160 pixels

Product colour

Black

Rack mounting

No

Hot-Plug support

Yes

LED indicators

Yes

Sustainability certificates

RoHS

Compliance certificates

RoHS

Wired remote switch

Yes

Remote switch cable length

1.8 m

Product colour

Black

Cable length

1.2 m

Rack mounting

No

LED indicators

Yes

Housing material

Plastic

Built-in display

No

Power source

DC

USB powered

Yes

Power consumption (typical)

1.38 W

Input voltage

5 V

Windows operating systems supported

Yes

Linux operating systems supported

Yes

Mac operating systems supported

Yes

HD type

4K Ultra HD

Video bandwidth

30 Hz

Maximum resolution

4096 x 2160 pixels

Sustainability certificates

RoHS

Compliance certificates

RoHS

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Width

84.2 mm

Depth

83.4 mm

Height

30.4 mm

Weight

360 g

Package width

55 mm

Package depth

155 mm

Package height

225 mm

Package weight

435 g

Package width

55 mm

Package depth

155 mm

Package height

225 mm

Package weight

435 g

Manual

Yes

Master (outer) case width

328 mm

Master (outer) case length

389 mm

Master (outer) case height

330 mm

Master (outer) case gross weight

9.33 kg

Products per master (outer) case

20 pc(s)

Master (outer) case net weight

7.2 kg

Harmonized System (HS) code

85176200
