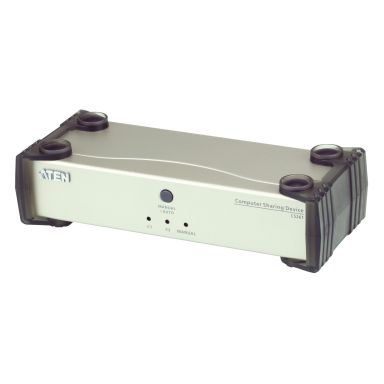

ATEN CS261 KVM switch
In Stock
|
Call For Price (0808 189 1246)
Ports & interfaces
Console USB ports quantity
4
Console ports
DVI-D, USB A
USB connector type
USB Type-A, USB Type-B
Number of computers controlled
3
Keyboard port type
USB
Mouse port type
USB
Video port type
DVI-D
USB 2.0 ports quantity
5
DVI-D ports quantity
3
DC-in jack
Yes
HDCP
Yes
Network
Ethernet LAN
No
Performance
HDCP
Yes
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Technical details
Push button
Yes
On Screen Display (OSD)
Yes
LED indicators
Yes
Hot keys
Yes
Compliance certificates
RoHS
Design
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Metal
Display
Built-in display
No
On Screen Display (OSD)
Yes
Power
Power source
DC
Power consumption (typical)
4.7 W
Input voltage
5 V
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Video
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
88 mm
Depth
210 mm
Height
55.5 mm
Weight
720 g
Other features
Push button
Yes
Hot keys
Yes
ATEN CS261 KVM switch
| Length | 21 cm |
| Width | 8.8 cm |
| Height | 5.55 cm |
| Weight | 0.72 kgs |
