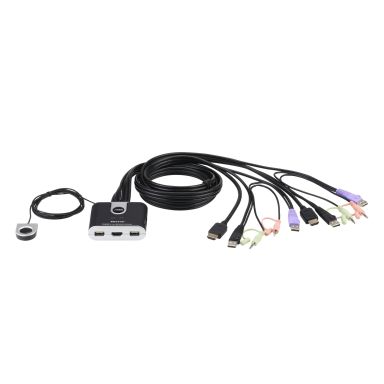

ATEN CS692 KVM switch Black
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Console USB ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, HDMI, USB A
USB connector type
USB Type-A
Number of microphone inputs
3
Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
Audio connections
Yes
Headphone outputs
3
HDMI ports quantity
2
USB 2.0 Type-A hub ports quantity
4
Console HDMI ports quantity
1
Cable length
1.2 m
Performance
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Scan interval
3,5,10,20 s
Technical details
Product colour
Black
Rack mounting
No
Scan interval
3,5,10,20 s
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Design
Remote switch cable length
1.8 m
Product colour
Black
Cable length
1.2 m
Rack mounting
No
Push button
Yes
LED indicators
Yes
Hot keys
Yes
Housing material
Plastic
Display
Built-in display
No
Power
Power source
DC
Power consumption (typical)
0.72 W
Input voltage
5 V
Video
HD type
WUXGA
Video bandwidth
60 Hz
Maximum resolution
1920 x 1200 pixels
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
82.4 mm
Depth
66.5 mm
Height
25.2 mm
Weight
480 g
Packaging content
Quick installation guide
Yes
Manual
Yes
Other features
Push button
Yes
Hot keys
Yes
ATEN CS692 KVM switch Black
